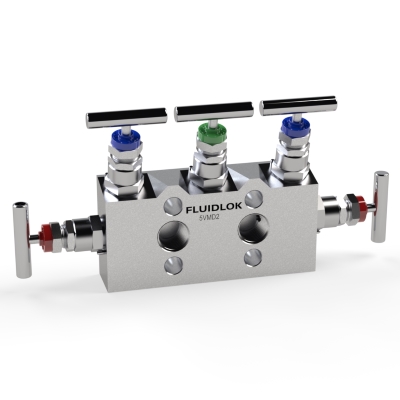

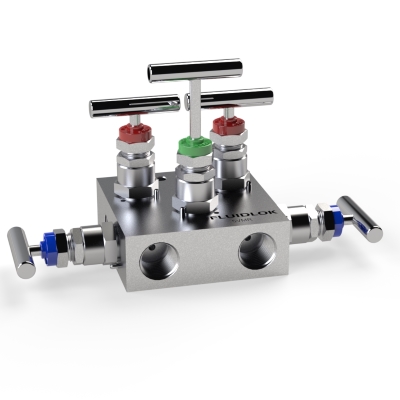

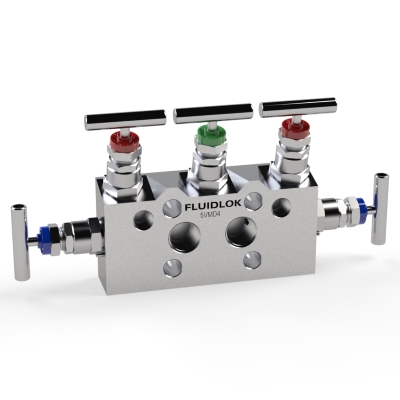

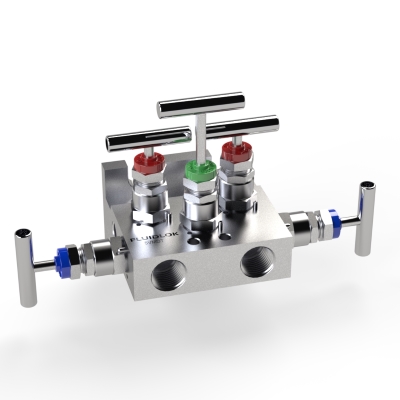

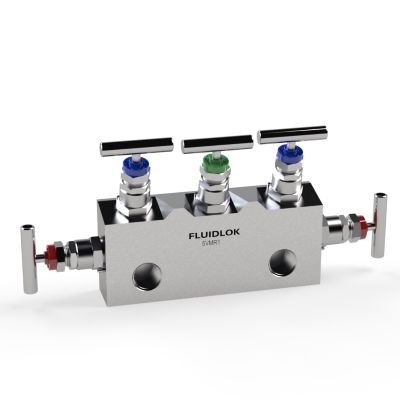

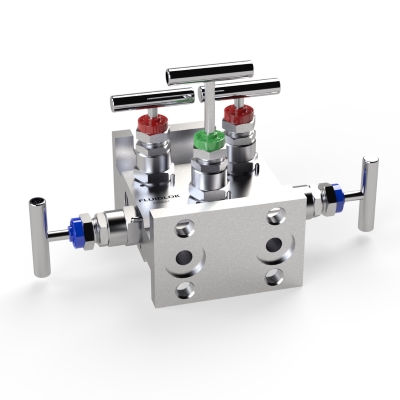

5 Valve Manifold

Similar to 3 valve manifolds, 5 valve manifolds are also used for differential pressure application. A typical 5-way manifold valve consists of two isolation valve, one equalize and two drain/vent valves integrated in one compact unit. Unlike 3-way valves where a drain plug is used in case a drain port is provided, these have two separate valves provided for drain or test purposes for better vent operation.

These valves are available in stainless steel, carbon steel, brass and alloys, etc. Our valve manifolds are designed to operate at standard 6000 psig pressure and combining with various packing options enables this valve manifold to suit application in aggressive media and aggressive environment.
