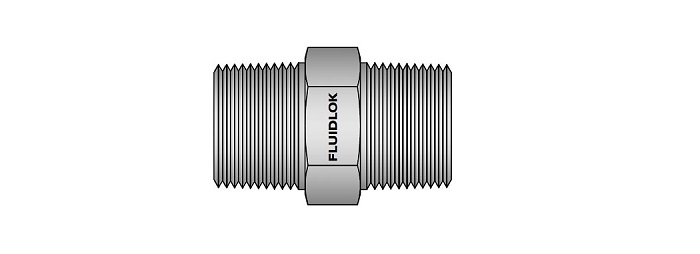

Hex Reducing Nipple - NPT (Ref. 5404)
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.

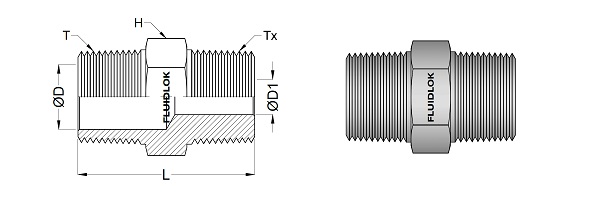

Hex Reducing Nipple - NPT
|
FLUIDLOK Part Number |
T (NPT) |
Tx (NPT) |
L (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|
| 4-PHRN-2 | 1/4" | 1/8" | 32.0 | 7.1 | 4.8 | 5/8 |
| 6-PHRN-2 | 3/8" | 1/8" | 32.0 | 10.3 | 4.8 | 3/4 |
| 6-PHRN-4 | 3/8" | 1/4" | 36.8 | 10.3 | 7.1 | 3/4 |
| 8-PHRN-4 | 1/2" | 1/4" | 43.2 | 13.5 | 7.1 | 7/8 |
| 8-PHRN-6 | 1/2" | 3/8" | 43.2 | 13.5 | 10.3 | 7/8 |
| 12-PHRN-2 | 3/4" | 1/8" | 40.4 | 18.3 | 4.7 | 1.1/8 |
| 12-PHRN-4 | 3/4" | 1/4" | 45.2 | 18.3 | 7.1 | 1.1/8 |
| 12-PHRN-6 | 3/4" | 3/8" | 44.9 | 18.3 | 10.3 | 1.1/8 |
| 12-PHRN-8 | 3/4" | 1/2" | 49.8 | 18.3 | 13.5 | 1.1/8 |
| 16-PHRN-8 | 1" | 1/2" | 53.1 | 23.8 | 13.5 | 1.3/8 |
| 16-PHRN-12 | 1" | 3/4" | 54.6 | 23.8 | 18.3 | 1.3/8 |
| 20-PHRN-12 | 1.1/4" | 3/4" | 37.4 | 31.7 | 18.3 | 1.11/16 |
| 20-PHRN-16 | 1.1/4" | 1" | 62.2 | 31.7 | 23.8 | 1.11/16 |
| 24-PHRN-12 | 1.1/2" | 3/4" | 59.9 | 38.1 | 18.3 | 2 |
| 24-PHRN-16 | 1.1/2" | 1" | 64.8 | 38.1 | 23.8 | 2 |
| 24-PHRN-20 | 1.1/2" | 1.1/4" | 65.5 | 38.1 | 31.7 | 2 |
| 32-PHRN-16 | 2" | 1" | 69.3 | 49.2 | 26.2 | 2.1/2 |
| 32-PHRN-20 | 2" | 1.1/4" | 70.1 | 49.2 | 31.7 | 2.1/2 |
| 32-PHRN-24 | 2" | 1.1/2" | 70.9 | 49.2 | 38.1 | 2.1/2 |
• Dimensions are for reference only. Subject to change.
