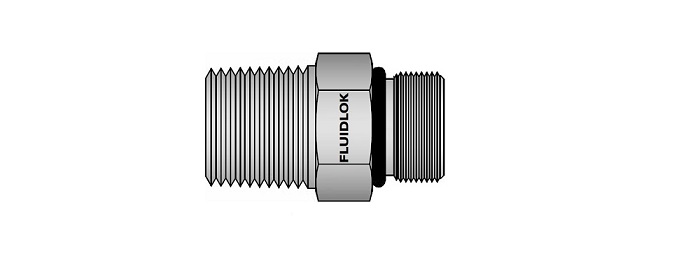

Hex Nipple - NPT X METRIC
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.

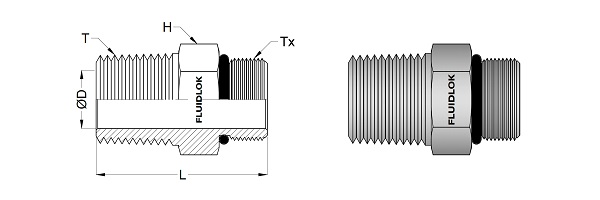

Hex Nipple - NPT X METRIC
|
FLUIDLOK Part Number |
T (NPT) |
Tx (Metric) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|
| 4N-PHN-M8 | 1/4" | M8 X 1.0 | 29.0 | 3.2 | 9/16 |
| 4N-PHN-M14 | 1/4" | M1 4X 1.5 | 34.2 | 7.0 | 5/8 |
| 4N-PHN-M16 | 1/4" | M16 X 1.5 | 35.2 | 7.1 | 11/16 |
| 4N-PHN-M20 | 1/4" | M20 X 1.5 | 37.2 | 7.1 | 7/8 |
| 6N-PHN-M14 | 3/8" | M14 X 1.5 | 34.2 | 7.0 | 11/16 |
| 6N-PHN-M20 | 3/8" | M20 X 1.5 | 37.2 | 9.5 | 7/8 |
| 6N-PHN-M24 | 3/8" | M24 X 1.5 | 38.2 | 9.5 | 1 |
| 8N-PHN-M14 | 1/2" | M14 X 1.5 | 39.1 | 7.2 | 7/8 |
| 8N-PHN-M20 | 1/2" | M20 X 1.5 | 42.0 | 10.0 | 7/8 |
| 8N-PHN-M24 | 1/2" | M24 X 1.5 | 43.5 | 11.9 | 1 |
| 12N-PHN-M20 | 3/4" | M20 X 1.5 | 42.1 | 10.8 | 1.1/16 |
| 12N-PHN-M27 | 3/4" | M27 X 2.0 | 46.7 | 15.8 | 1.1/2 |
| 16N-PHN-M30 | 1" | M30 X 2.0 | 56.3 | 19.4 | 1.3/8 |
• Dimensions are for reference only. Subject to change.
