Pipe Gauge 360° Syphon
Application:
Pipe Gauge Syphon are used to protect the pressure gauge from the effect of hot pressure media such as steam and also to resuce the effect of rapid pressure changes. Syphon allows condensate to form & to be collected inside the syphon, preventing the hot media vapours, not just steam from coming in direct contact with the pressure instruments.

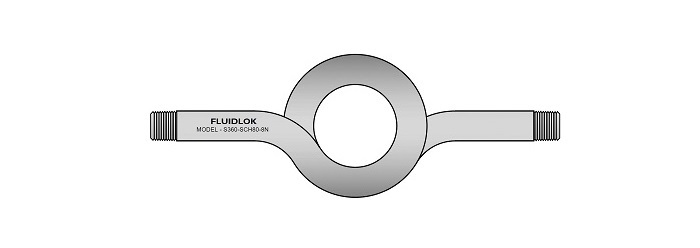

Pipe Gauge 360° Syphon
|
FLUIDLOK Part Number |
Schedule Designation ANSI/ASME |
End Connection |

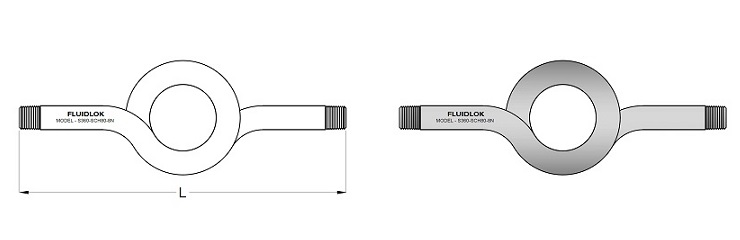

L (mm) |
|
|---|---|---|---|---|
| Inlet | Outlet | |||
| S360-SCH40-4N | SCH 40 | 1/4" NPT | 1/4" NPT | 185.4 |
| S360-SCH40-8N | SCH 40 | 1/2" NPT | 1/2" NPT | 290.0 |
| S360-SCH80-4N | SCH 80 | 1/4" NPT | 1/4" NPT | 185.4 |
| S360-SCH80-8N | SCH 80 | 1/2" NPT | 1/2" NPT | 290.0 |
| S360-SCH160-8N | SCH 160 | 1/2" NPT | 1/2" NPT | 290.0 |
• Dimensions are for reference only. Subject to change.
