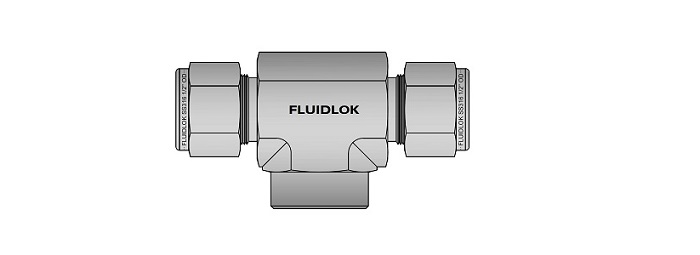

Female Branch Tee
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8” to 2” & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: FLUIDLOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes
|

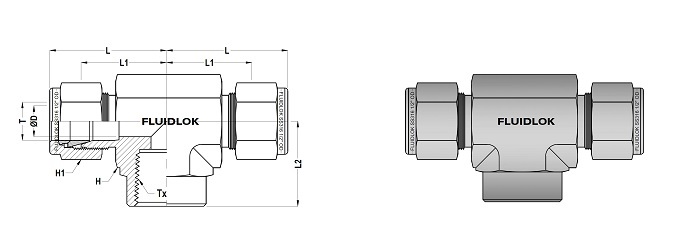

FLUIDLOK Part Number |
T (Tube OD) |
Tx (NPT) |
L (mm) |
L1 (mm) |
L2 (mm) |
Ø D (mm) |
H (inch) |
H1 (inch) |
|---|---|---|---|---|---|---|---|---|
| 2-FBT-2N | 1/8" | 1/8" | 24.6 | 18.0 | 19.0 | 2.3 | 9/16 | 7/16 |
| 4-FBT-2N | 1/4" | 1/8" | 26.9 | 19.5 | 19.0 | 4.8 | 9/16 | 9/16 |
| 4-FBT-4N | 1/4" | 1/4" | 29.7 | 22.3 | 22.3 | 4.8 | 3/4 | 9/16 |
| 6-FBT-4N | 3/8" | 1/4" | 31.2 | 23.9 | 22.3 | 7.1 | 3/4 | 11/16 |
| 6-FBT-6N | 3/8" | 3/8" | 33.3 | 25.9 | 22.3 | 7.1 | 7/8 | 11/16 |
| 6-FBT-8N | 3/8" | 1/2" | 36.1 | 28.7 | 28.4 | 7.1 | 7/8 | 11/16 |
| 8-FBT-6N | 1/2" | 3/8" | 36.1 | 21.8 | 22.3 | 10.4 | 7/8 | 7/8 |
| 8-FBT-8N | 1/2" | 1/2" | 38.9 | 28.7 | 28.4 | 10.4 | 1.1/16 | 7/8 |
| 12-FBT-12N | 3/4" | 3/4" | 44.7 | 34.5 | 31.7 | 15.7 | 1.3/8 | 1.1/8 |
| 16-FBT-12N | 1" | 3/4" | 49.0 | 36.8 | 31.7 | 22.3 | 1.3/8 | 1.1/2 |
| 16-FBT-16N | 1" | 1" | 53.6 | 26.4 | 38.1 | 22.3 | 1.5/8 | 1.1/2 |
Metric Tubes
|
FLUIDLOK Part Number |
T (Tube OD) |
Tx (NPT) |
L (mm) |
L1 (mm) |
L2 (mm) |
Ø D (mm) |
H (mm) |
H1 (mm) |
|---|---|---|---|---|---|---|---|---|
| 6M-FBT-2N | 6 mm | 1/8" | 27.0 | 19.6 | 19.0 | 4.8 | 14.3 | 14 |
| 6M-FBT-4N | 6 mm | 1/4" | 29.8 | 22.4 | 22.4 | 4.8 | 19.0 | 14 |
| 8M-FBT-4N | 8 mm | 1/4" | 30.6 | 23.1 | 22.4 | 6.4 | 19.0 | 16 |
| 10M-FBT-4N | 10 mm | 1/4" | 33.5 | 25.9 | 22.4 | 7.9 | 19.0 | 19 |
| 12M-FBT-6N | 12 mm | 3/8" | 36.0 | 25.9 | 22.4 | 9.5 | 22.2 | 22 |
| 12M-FBT-8N | 12 mm | 1/2" | 40.0 | 29.7 | 28.4 | 9.5 | 27.0 | 22 |
| 16M-FBT-8N | 16 mm | 1/2" | 38.8 | 28.7 | 28.4 | 12.7 | 27.0 | 25 |
| 25M-FBT-16N | 25 mm | 1" | 53.7 | 41.4 | 38.1 | 21.8 | 41.2 | 38 |
• Dimensions are for reference only. Subject to change.
