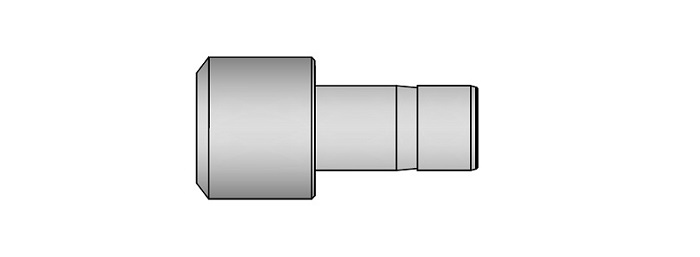

Tube Weld Adaptor
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8” to 2” & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: FLUIDLOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes
|

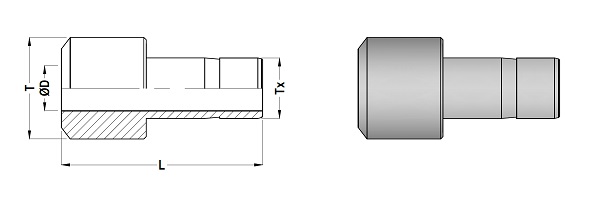

FLUIDLOK Part Number |
T (Tube Stub) |
Tx (Pipe Weld) |
Ø D (mm) |
L (mm) |
|---|---|---|---|---|
| 4S-TPW-4PW | 1/4" | 1/4" | 29.0 | 4.7 |
| 6S-TPW-8PW | 3/8" | 1/2" | 37.1 | 7.1 |
| 8S-TPW-8PW | 1/2" | 1/2" | 42.2 | 9.9 |
| 8S-TPW-12PW | 3/4" | 3/4" | 42.7 | 9.9 |
| 16S-TPW-16PW | 1" | 1" | 52.3 | 15.0 |
• Dimensions are for reference only. Subject to change.
