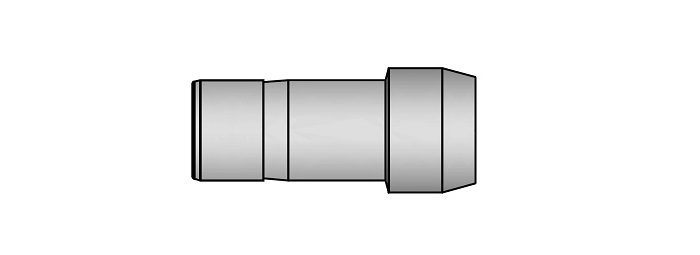

Port Connector
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8” to 2” & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: FLUIDLOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes
|

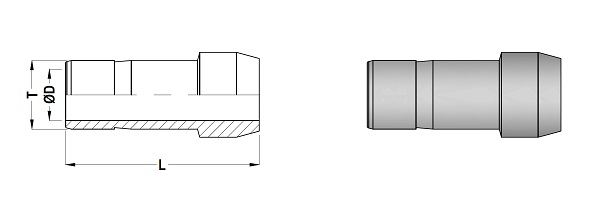

FLUIDLOK Part Number |
T (Tube OD) |
L (mm) |
Ø D (mm) |
|---|---|---|---|
| 4-PC | 1/4" | 24.6 | 4.8 |
| 5-PC | 5/16" | 25.9 | 6.3 |
| 6-PC | 3/8" | 26.2 | 7.1 |
| 8-PC | 1/2" | 35.8 | 9.9 |
| 12-PC | 3/4" | 37.3 | 15.0 |
| 16-PC | 1" | 48.0 | 20.3 |
Metric Tubes
|
FLUIDLOK Part Number |
T (Tube OD) |
L (mm) |
Ø D (mm) |
|---|---|---|---|
| 6M-PC | 6 mm | 24.6 | 4.4 |
| 8M-PC | 8 mm | 25.9 | 6.3 |
| 10M-PC | 10 mm | 26.1 | 8.2 |
| 12M-PC | 12 mm | 35.8 | 9.1 |
| 16M-PC | 16 mm | 37.4 | 12.7 |
• Dimensions are for reference only. Subject to change.
