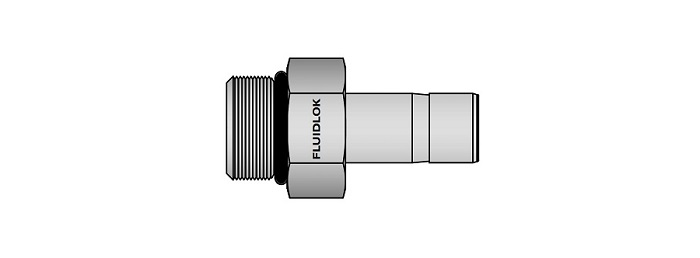

Male Tube Adaptor - UF
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8” to 2” & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: FLUIDLOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes
|

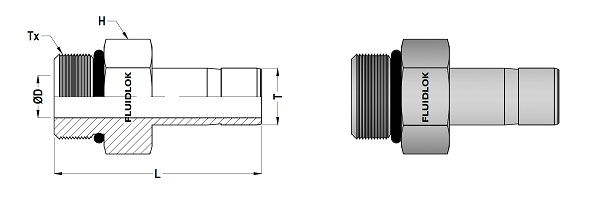

FLUIDLOK Part Number |
T (Tube OD) |
Tx |
Tx (UN/UNF-2A) |
L (mm) |
Ø D (mm) |
H (Inch) |
|---|---|---|---|---|---|---|
| 2-TAM-2UF | 1/8" | 1/8" | 5/16"-24 | 30.5 | 2.3 | 7/16 |
| 4-TAM-4UF | 1/4" | 1/4" | 7/16"-20 | 35.3 | 4.8 | 9/16 |
| 6-TAM-4UF | 3/8" | 1/4" | 9/16"-18 | 37.1 | 4.8 | 9/16 |
| 6-TAM-6UF | 3/8" | 3/8" | 9/16"-18 | 38.6 | 7.1 | 11/16 |
| 6-TAM-8UF | 3/8" | 1/2" | 9/16"-18 | 40.6 | 7.1 | 7/8 |
| 8-TAM-6UF | 1/2" | 3/8" | 3/4"-16 | 44.2 | 9.9 | 11/16 |
| 8-TAM-8UF | 1/2" | 1/2" | 3/4"-16 | 46.2 | 9.9 | 7/8 |
| 10-TAM-10UF | 5/8" | 5/8" | 7/8"-14 | 49.3 | 12.7 | 1 |
| 12-TAM-12UF | 3/4" | 3/4" | 1.1/16"-12 | 53.3 | 15.0 | 1.1/4 |
| 16-TAM-16UF | 1" | 1" | 1.5/16"-12 | 61.2 | 20.3 | 1.1/2 |
• Dimensions are for reference only. Subject to change.
