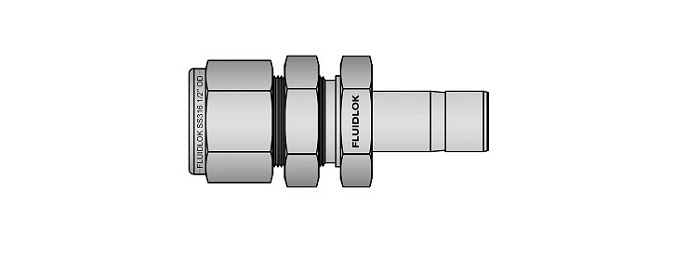

Bulkhead Tube Reducer
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8” to 2” & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: FLUIDLOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes
|

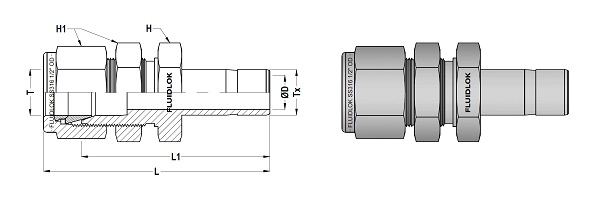

FLUIDLOK Part Number |
T (Tube OD) |
Tx (Tube Stub) |
L (mm) |
L1 (mm) |
Ø D (mm) |
H (Inch) |
H1 (Inch) |
|---|---|---|---|---|---|---|---|
| 2-BTR-2S | 1/8" | 1/8" | 49.5 | 42.9 | 2.0 | 1/2 | 7/16 |
| 4-BTR-4S | 1/4" | 1/4" | 55.9 | 48.5 | 4.8 | 5/8 | 9/16 |
| 6-BTR-6S | 3/8" | 3/8" | 61.2 | 53.8 | 7.1 | 3/4 | 11/16 |
| 8-BTR-8S | 1/2" | 1/2" | 72.9 | 62.7 | 10.4 | 15/16 | 7/8 |
| 10-BTR-10S | 5/8" | 5/8" | 75.2 | 65.0 | 12.7 | 1.1/16 | 1 |
| 16-BTR-16S | 1" | 1" | 100.3 | 88.1 | 20.3 | 1.5/8 | 1.1/2 |
• Dimensions are for reference only. Subject to change.
