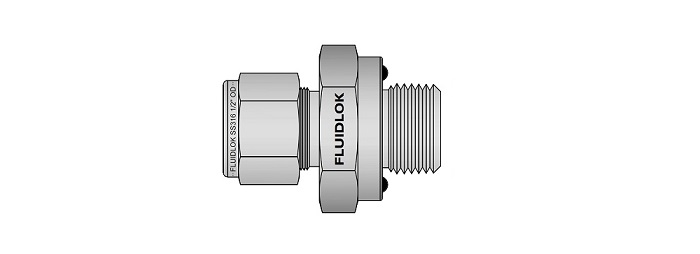

O-Seal Male Connector - UF
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8” to 2” & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: FLUIDLOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes
|
FLUIDLOK Part Number |
T (Tube OD) |
Tx |
Tx (UN/UNF-2A) |
L (mm) |
L1 (mm) |
Ø d (mm) |
H (Inch) |
H1 (Inch) |
|---|---|---|---|---|---|---|---|---|
| 2-MCOS-2UF | 1/8" | 1/8" | 5/16"-24 | 32.8 | 26.2 | 2.3 | 9/16 | 7/16 |
| 3-MCOS-3UF | 3/16" | 3/16" | 3/8"-20 | 34.3 | 27.7 | 3.0 | 5/8 | 7/16 |
| 4-MCOS-4UF | 1/4" | 1/4" | 7/16"-20 | 38.3 | 31.0 | 4.8 | 3/4 | 9/16 |
| 5-MCOS-5UF | 5/16" | 5/16" | 1/2"-20 | 40.6 | 33.3 | 6.3 | 7/8 | 5/8 |
| 6-MCOS-6UF | 3/8" | 3/8" | 9/16"-18 | 42.4 | 35.0 | 7.1 | 15/16 | 11/16 |
| 8-MCOS-8UF | 1/2" | 1/2" | 3/4"-16 | 46.0 | 35.8 | 10.4 | 1.1/8 | 11/16 |
| 12-MCOS-12UF | 3/4" | 3/4" | 1.1/16"-12 | 52.3 | 42.2 | 15.7 | 1.1/2 | 7/8 |
| 16-MCOS-16UF | 1" | 1" | 1.5/16"-12 | 58.2 | 46.0 | 22.3 | 1.3/4 | 1.1/8 |
• Dimensions are for reference only. Subject to change.
