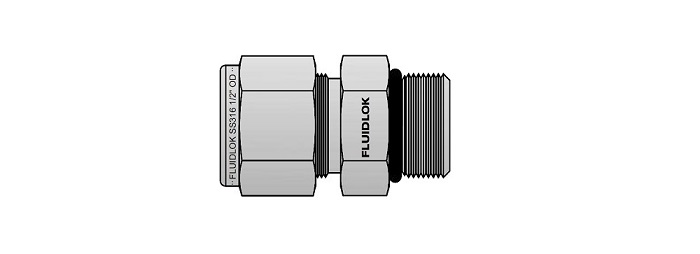

Male Connector - UF
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8” to 2” & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: FLUIDLOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes
|

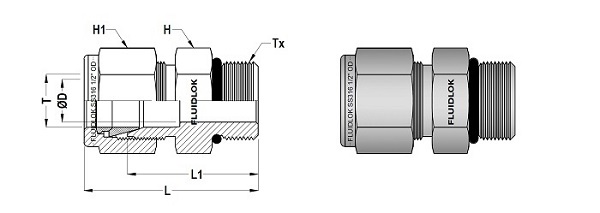

FLUIDLOK Part Number |
T (Tube OD) |
Tx |
Tx (UN/UNF-2A) |
L (mm) |
L1 (mm) |
Ø D (mm) |
H (Inch) |
H1 (Inch) |
|---|---|---|---|---|---|---|---|---|
| 2-MC-2UF | 1/8" | 1/8" | 5/16"-24 | 30.0 | 23.4 | 2.3 | 7/16 | 7/16 |
| 4-MC-4UF | 1/4" | 1/4" | 7/16"-20 | 34.0 | 26.7 | 4.8 | 9/16 | 9/16 |
| 4-MC-6UF | 1/4" | 3/8" | 9/16"-18 | 35.6 | 28.2 | 4.8 | 11/16 | 9/16 |
| 4-MC-8UF | 1/4" | 1/2" | 3/4"-16 | 37.6 | 30.2 | 4.8 | 7/8 | 9/16 |
| 4-MC-10UF | 1/4" | 5/8" | 7/8"-14 | 40.6 | 33.3 | 4.8 | 1 | 9/16 |
| 5-MC-5UF | 5/16" | 5/16" | 1/2"-20 | 34.8 | 27.4 | 6.3 | 5/8 | 5/8 |
| 6-MC-4UF | 3/8" | 1/4" | 7/16"-20 | 35.6 | 28.2 | 5.0 | 5/8 | 11/16 |
| 6-MC-6UF | 3/8" | 3/8" | 9/16"-18 | 37.1 | 29.1 | 7.1 | 11/16 | 11/16 |
| 6-MC-8UF | 3/8" | 1/2" | 3/4"-16 | 39.1 | 31.7 | 7.1 | 7/8 | 11/16 |
| 6-MC-10UF | 3/8" | 5/8" | 7/8"-14 | 42.2 | 34.8 | 7.1 | 1 | 11/16 |
| 8-MC-6UF | 1/2" | 3/8" | 9/16"-18 | 39.1 | 28.9 | 7.1 | 13/16 | 7/8 |
| 8-MC-8UF | 1/2" | 1/2" | 3/4"-16 | 41.9 | 31.7 | 10.4 | 7/8 | 7/8 |
| 8-MC-10UF | 1/2" | 5/8" | 7/8"-14 | 44.9 | 34.8 | 10.7 | 1 | 7/8 |
| 8-MC-12UF | 1/2" | 3/4" | 1.1/16"-12 | 49.0 | 38.9 | 10.4 | 1.1/4 | 7/8 |
| 10-MC-8UF | 5/8" | 1/2" | 3/4"-16 | 41.9 | 31.7 | 10.6 | 15/16 | 1 |
| 10-MC-10UF | 5/8" | 5/8" | 7/8"-14 | 45.2 | 35.0 | 12.7 | 1 | 1 |
| 12-MC-8UF | 3/4" | 1/2" | 3/4"-16 | 46.0 | 35.8 | 10.6 | 1.1/16 | 1.1/8 |
| 12-MC-12UF | 3/4" | 3/4" | 1.1/16"-12 | 49.0 | 38.9 | 15.7 | 1.1/4 | 1.1/8 |
| 14-MC-14UF | 7/8" | 7/8" | 1.3/16"-12 | 49.0 | 38.9 | 18.3 | 1.3/8 | 1.1/4 |
| 16-MC-12UF | 1" | 3/4" | 1.1/16"-12 | 53.3 | 41.1 | 16.8 | 1.3/8 | 1.1/2 |
| 16-MC-16UF | 1" | 1" | 1.5/16"-12 | 54.3 | 42.2 | 22.3 | 1.1/2 | 1.1/2 |
• Dimensions are for reference only. Subject to change.
