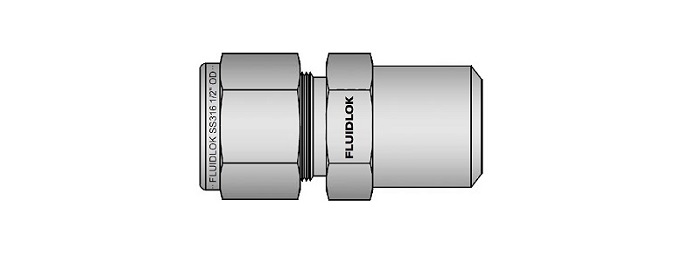

Male Connector Pipe Weld
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8” to 2” & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: FLUIDLOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes
|

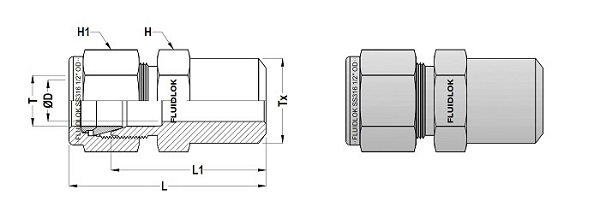

FLUIDLOK Part Number |
T (Tube OD) |
Tx (Pipe Weld) |
L (mm) |
L1 (mm) |
Ø D (mm) |
H (Inch) |
H1 (Inch) |
|---|---|---|---|---|---|---|---|
| 2-MC-2PW | 1/8" | 1/8" | 30.5 | 23.9 | 2.3 | 7/16 | 7/16 |
| 3-MC-2PW | 3/16" | 1/8" | 31.2 | 24.6 | 3.0 | 7/16 | 1/2 |
| 4-MC-2PW | 1/4" | 1/8" | 32.8 | 25.4 | 4.8 | 1/2 | 9/16 |
| 4-MC-4PW | 1/4" | 1/4" | 37.8 | 30.5 | 4.8 | 9/16 | 9/16 |
| 5-MC-2PW | 5/16" | 1/8" | 34.0 | 26.7 | 5.0 | 9/16 | 5/8 |
| 5-MC-4PW | 5/16" | 1/4" | 38.6 | 31.2 | 6.3 | 9/16 | 5/8 |
| 6-MC-4PW | 3/8" | 1/4" | 39.9 | 32.5 | 7.1 | 5/8 | 11/16 |
| 6-MC-6PW | 3/8" | 3/8" | 39.9 | 32.5 | 7.1 | 11/16 | 11/16 |
| 6-MC-8PW | 3/8" | 1/2" | 46.2 | 38.7 | 7.1 | 7/8 | 11/16 |
| 8-MC-6PW | 1/2" | 3/8" | 43.4 | 33.3 | 10.4 | 13/16 | 7/8 |
| 8-MC-8PW | 1/2" | 1/2" | 49.0 | 38.9 | 10.4 | 7/8 | 7/8 |
| 8-MC-12PW | 1/2" | 3/4" | 50.5 | 40.4 | 10.4 | 1.1/16 | 7/8 |
| 12-MC-12PW | 3/4" | 3/4" | 49.0 | 38.9 | 12.7 | 15/16 | 1 |
| 16-MC-16PW | 1" | 1" | 50.5 | 40.4 | 15.7 | 1.1/16 | 1.1/8 |
Metric Tubes
|
FLUIDLOK Part Number |
T (Tube OD) |
Tx (Pipe Weld) |
L (mm) |
L1 (mm) |
Ø D (mm) |
H (mm) |
H1 (mm) |
|---|---|---|---|---|---|---|---|
| 3M-MC-2PW | 3 mm | 1/8" | 30.5 | 23.9 | 2.4 | 12 | 12 |
| 4M-MC-2PW | 4 mm | 1/8" | 31.2 | 24.6 | 2.4 | 12 | 12 |
| 6M-MC-2PW | 6 mm | 1/8" | 32.8 | 25.4 | 4.8 | 14 | 14 |
| 6M-MC-4PW | 6 mm | 1/4" | 37.9 | 30.5 | 4.8 | 14 | 14 |
| 8M-MC-2PW | 8 mm | 1/8" | 34.2 | 26.7 | 5.1 | 16 | 16 |
| 8M-MC-4PW | 8 mm | 1/4" | 38.7 | 31.2 | 6.4 | 16 | 16 |
| 8M-MC-8PW | 8 mm | 1/2" | 45.6 | 38.1 | 6.4 | 22 | 16 |
| 10M-MC-4PW | 10 mm | 1/4" | 40.9 | 33.3 | 7.1 | 19 | 19 |
| 10M-MC-6PW | 10 mm | 3/8" | 40.9 | 33.3 | 7.9 | 19 | 19 |
| 10M-MC-8PW | 10 mm | 1/2" | 46.5 | 38.9 | 7.9 | 22 | 19 |
| 12M-MC-4PW | 12 mm | 1/4" | 43.4 | 33.3 | 7.1 | 22 | 22 |
| 12M-MC-6PW | 12 mm | 3/8" | 43.4 | 33.3 | 9.5 | 22 | 22 |
| 12M-MC-8PW | 12 mm | 1/2" | 49.0 | 38.9 | 9.5 | 22 | 22 |
| 15M-MC-8PW | 15 mm | 1/2" | 49.0 | 38.9 | 11.9 | 24 | 25 |
| 16M-MC-8PW | 16 mm | 1/2" | 49.0 | 38.9 | 12.7 | 24 | 25 |
| 18M-MC-8PW | 18 mm | 1/2" | 50.5 | 40.4 | 13.5 | 27 | 30 |
• Dimensions are for reference only. Subject to change.
