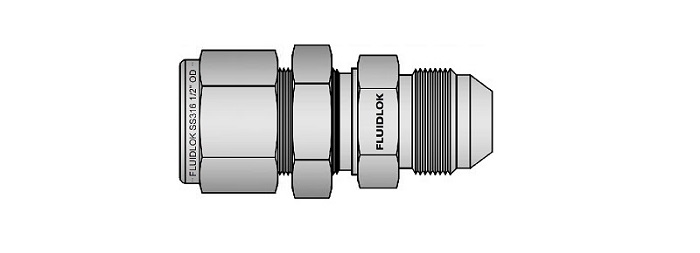

An Bulkhead Male Connector 37° JIC
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8” to 2” & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: FLUIDLOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes
|

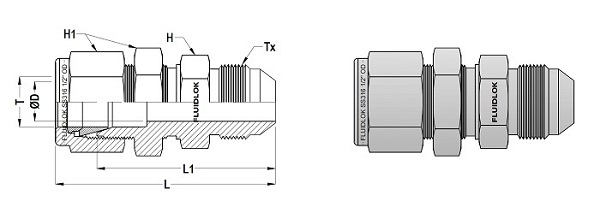

FLUIDLOK Part Number |
T (Tube OD) |
Tx |
Tx (UN/UNF-2A) |
L (mm) |
L1 (mm) |
Ø D (mm) |
H (Inch) |
H1 (Inch) |
|---|---|---|---|---|---|---|---|---|
| 4-BMC-4AN | 1/4" | 1/4" | 7/16"-20 | 53.7 | 46.4 | 4.3 | 1/2 | 9/16 |
| 6-BMC-6AN | 3/8" | 3/8" | 9/16"-20 | 57.1 | 49.8 | 7.1 | 5/8 | 11/16 |
| 8-BMC-8AN | 1/2" | 1/2" | 3/4"-16 | 65.7 | 55.6 | 9.9 | 13/16 | 7/8 |
| 12-BMC-12AN | 3/4" | 3/4" | 1.1/16"-12 | 78.9 | 68.8 | 15.5 | 1.1/8 | 1.1/8 |
| 16-BMC-16AN | 1" | 1" | 1.5/16"-12 | 92.4 | 80.2 | 21.3 | 1.3/8 | 1.1/2 |
• Dimensions are for reference only. Subject to change.
