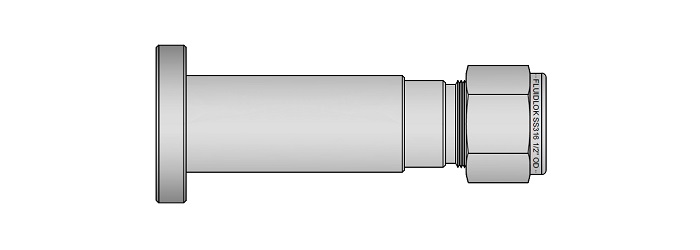

Lap Joint Flange Connector
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8” to 2” & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: FLUIDLOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

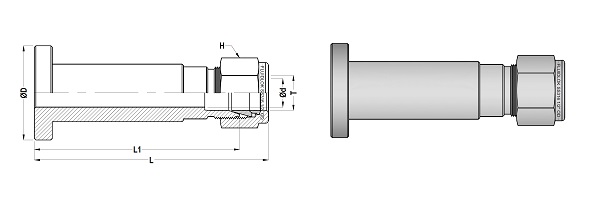

Lap Joint Flange Connector
|
FLUIDLOK Part Number |
T (Tube OD) |
L (mm) |
L1 (mm) |
Ø d (mm) |
Ø D (mm) |
H (Inch) |
|---|---|---|---|---|---|---|
| LJFC-4-SM | 1/4" | 80.8 | 74.9 | 4.8 | 34.5 | 9/16 |
| LJFC-4-SR | 1/4" | 80.8 | 74.9 | 4.8 | 34.5 | 9/16 |
| LJFC-6-SM | 3/8" | 82.3 | 74.9 | 7.1 | 34.5 | 11/16 |
| LJFC-6-SR | 3/8" | 82.3 | 74.9 | 7.1 | 34.5 | 11/16 |
| LJFC-8-SM | 1/2" | 85.1 | 74.9 | 10.4 | 34.5 | 7/8 |
| LJFC-8-SR | 1/2" | 85.1 | 74.9 | 10.4 | 34.5 | 7/8 |
• Dimensions are for reference only. Subject to change.
