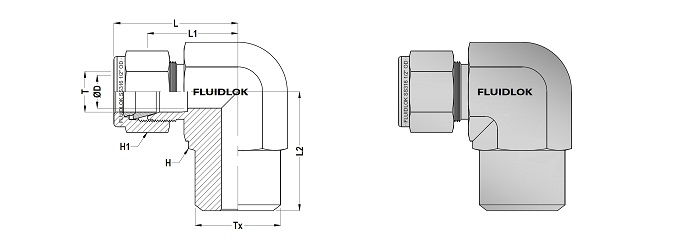

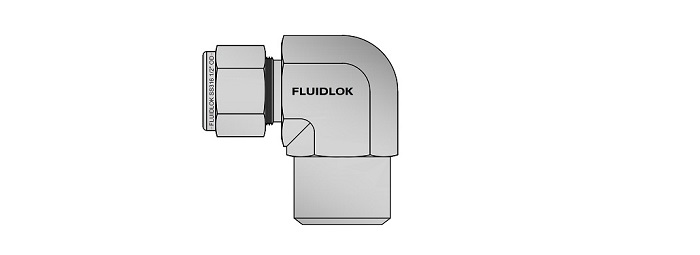

Male Elbow Pipe Weld
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8” to 2” & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: FLUIDLOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes
|
FLUIDLOK Part Number |
T (Tube OD) |
Tx (Pipe Weld) |
L (mm) |
L1 (mm) |
L2 (mm) |
Ø D (mm) |
H (Inch) |
H1 (Inch) |
|---|---|---|---|---|---|---|---|---|
| 4-ME-2PW | 1/4" | 1/8" | 26.9 | 19.6 | 18.8 | 4.8 | 9/16 | 9/16 |
| 4-ME-4PW | 1/4" | 1/4" | 26.9 | 19.5 | 23.4 | 4.8 | 9/16 | 9/16 |
| 6-ME-4PW | 3/8" | 1/4" | 30.5 | 23.1 | 25.4 | 7.1 | 5/8 | 11/16 |
| 8-ME-8PW | 1/2" | 1/2" | 36.1 | 25.9 | 33.0 | 10.4 | 7/8 | 7/8 |
| 12-ME-12PW | 3/4" | 3/4" | 39.8 | 29.7 | 36.7 | 15.8 | 1.1/16 | 1.1/8 |
• Dimensions are for reference only. Subject to change.
