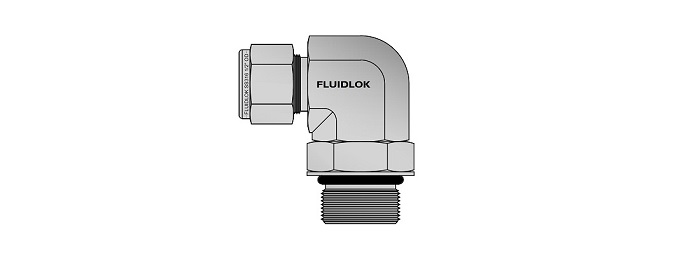

Adjustable Male Elbow
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8” to 2” & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: FLUIDLOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes
|

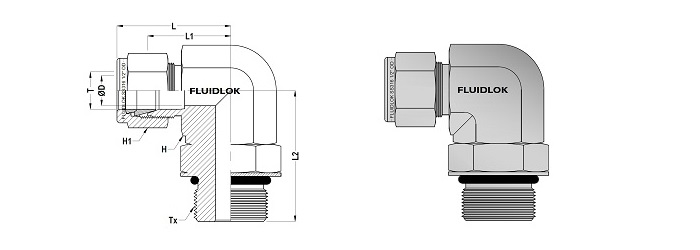

FLUIDLOK Part Number |
T (Tube OD) |
Tx |
Tx (UN/UNF-2A) |
L (mm) |
L1 (mm) |
L2 (mm) |
Ø D (mm) |
H (inch) |
H1 (inch) |
|---|---|---|---|---|---|---|---|---|---|
| 4-AME-4UF | 1/4" | 1/4" | 7/16"-20 | 28.4 | 21.1 | 28.4 | 4.8 | 1/2 | 9/16 |
| 4-AME-6UF | 1/4" | 3/8" | 9/16"-18 | 30.5 | 23.1 | 32.3 | 4.8 | 5/8 | 11/16 |
| 5-AME-5UF | 5/16" | 5/16" | 1/2"-20 | 30.2 | 22.8 | 29.5 | 5.8 | 9/16 | 5/8 |
| 6-AME-6UF | 3/8" | 3/8" | 9/16"-18 | 32.0 | 24.6 | 32.3 | 7.1 | 5/8 | 11/16 |
| 6-AME-8UF | 3/8" | 1/2" | 3/4"-16 | 34.8 | 19.3 | 37.8 | 7.1 | 13/16 | 7/8 |
| 8-AME-8UF | 1/2" | 1/2" | 3/4"-16 | 37.6 | 27.4 | 37.8 | 10.4 | 13/16 | 7/8 |
| 10-AME-10UF | 5/8" | 5/8" | 7/8"-14 | 39.6 | 29.5 | 43.4 | 12.7 | 15/16 | 1 |
| 12-AME-12UF | 3/4" | 3/4" | 1.1/16"-12 | 41.4 | 31.2 | 48.7 | 15.7 | 1.1/16 | 1.1/4 |
| 14-AME-14UF | 7/8" | 7/8" | 1.3/16"-12 | 43.2 | 33.0 | 50.5 | 18.3 | 1.3/8 | 1.1/4 |
| 16-AME-16UF | 1" | 1" | 1.5/16"-12 | 50.4 | 38.3 | 53.6 | 22.3 | 1.3/8 | 1.1/2 |
• Dimensions are for reference only. Subject to change.
