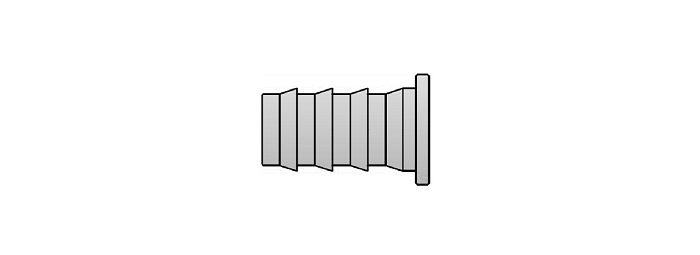

Tube Insert
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8” to 2” & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: FLUIDLOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes
|
FLUIDLOK Part Number |

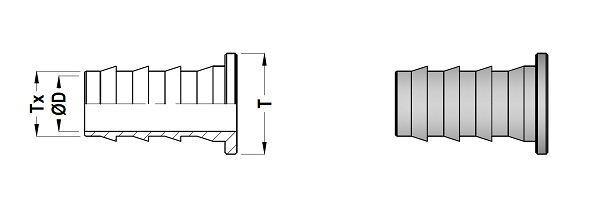

T (Tube OD) |
Tx (Tube OD) |
Ø D (mm) |
|---|---|---|---|
| 4-TI-2 | 1/4" | 1/8" | 2.3 |
| 4-TI-3 | 1/4" | 3/16" | 3.5 |
| 6-TI-3 | 3/8" | 3/16" | 3.5 |
| 6-TI-4 | 3/8" | 1/4" | 4.0 |
| 8-TI-6 | 1/2" | 3/8" | 7.0 |
| 12-TI-8 | 3/4" | 1/2" | 11.0 |
| 12-TI-10 | 3/4" | 5/8" | 14.0 |
Metric Tubes
|
FLUIDLOK Part Number |
T (Tube OD) |
Tx (Tube OD) |
Ø D (mm) |
|---|---|---|---|
| 6M-TI-4M | 6mm | 4mm | 2.8 |
| 8M-TI-6M | 8mm | 6mm | 4.4 |
| 10M-TI-8M | 10mm | 8mm | 6.4 |
| 12M-TI-8M | 12mm | 8mm | 6.4 |
| 12M-TI-10M | 12mm | 10mm | 8.3 |
• Dimensions are for reference only. Subject to change.
