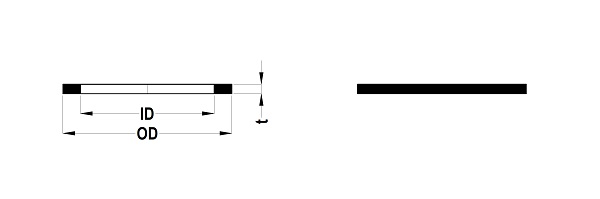

RP Gasket

FLUIDLOK Part Number	BSPP	ID (mm)	OD (mm)	t (mm)
2G-RP-GSKT	1/8"	10.0	15.0	1.0
4G-RP-GSKT	1/4"	13.5	18.8	1.5
6G-RP-GSKT	3/8"	17.0	22.9	1.5
8G-RP-GSKT	1/2"	21.3	26.9	1.6
12G-RP-GSKT	3/4"	26.7	33.0	2.0
16G-RP-GSKT	1"	34.0	40.0	2.0

---

• Standard material is Copper.                                                                                                                                    • NOTE: RS gasket may be used with RP Fittings & RS Fittings.
• Dimensions are for reference only. Subject to change.
