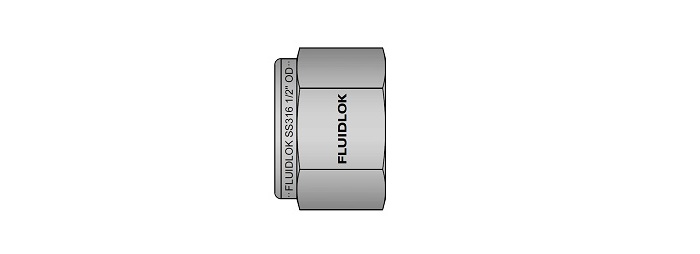

Nut
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8” to 2” & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: FLUIDLOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

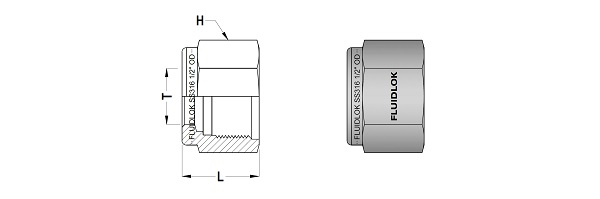

Fractional Tubes
|
FLUIDLOK Part Number |
T (Tube OD) |
L (mm) |
H (Inch) |
|---|---|---|---|
| 1-N | 1/16" | 7.9 | 5/16 |
| 2-N | 1/8" | 11.9 | 7/16 |
| 3-N | 3/16" | 11.9 | 1/2 |
| 4-N | 1/4" | 12.7 | 9/16 |
| 5-N | 5/16" | 13.5 | 5/8 |
| 6-N | 3/8" | 14.2 | 11/16 |
| 8-N | 1/2" | 17.5 | 7/8 |
| 10-N | 5/8" | 17.5 | 1 |
| 12-N | 3/4" | 17.5 | 1.1/8 |
| 14-N | 7/8" | 17.5 | 1.1/4 |
| 16-N | 1" | 20.6 | 1.1/2 |
Metric Tubes
|
FLUIDLOK Part Number |
T (Tube OD) |
L (mm) |
H (mm) |
|---|---|---|---|
| 2M-N | 2mm | 11.9 | 12.0 |
| 3M-N | 3mm | 11.9 | 12.0 |
| 4M-N | 4mm | 11.9 | 12.0 |
| 6M-N | 6mm | 12.7 | 14.0 |
| 8M-N | 8mm | 13.5 | 16.0 |
| 10M-N | 10mm | 15.1 | 19.0 |
| 12M-N | 12mm | 17.5 | 22.0 |
| 14M-N | 14mm | 17.5 | 25.0 |
| 15M-N | 15mm | 17.5 | 25.0 |
| 16M-N | 16mm | 17.5 | 30.0 |
| 18M-N | 18mm | 17.5 | 32.0 |
| 20M-N | 20mm | 17.5 | 32.0 |
| 22M-N | 22mm | 17.5 | 32.0 |
| 25M-N | 25mm | 20.6 | 38.0 |
• Dimensions are for reference only. Subject to change.
