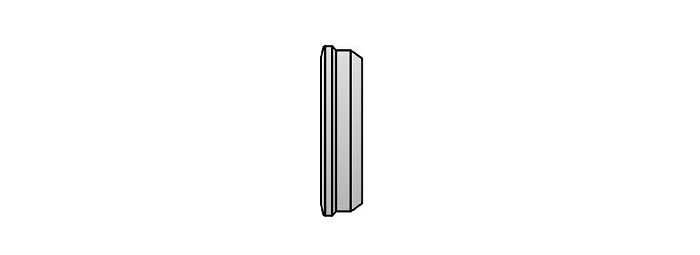

Back Ferrule
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8” to 2” & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: FLUIDLOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes
|

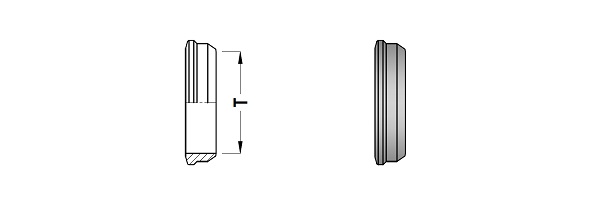

FLUIDLOK Part No |
T (Tube OD) |
|---|---|
| 1-BF | 1/16" |
| 2-BF | 1/8" |
| 4-BF | 1/4" |
| 5-BF | 5/16" |
| 6-BF | 3/8" |
| 8-BF | 1/2" |
| 10-BF | 5/8" |
| 12-BF | 3/4" |
| 14-BF | 7/8" |
| 16-BF | 1" |
Metric Tubes
|
FLUIDLOK Part No |
T (Tube OD) |
|---|---|
| 3M-BF | 3mm |
| 6M-BF | 6mm |
| 8M-BF | 8mm |
| 10M-BF | 10mm |
| 12M-BF | 12mm |
| 14M-BF | 14mm |
| 15M-BF | 15mm |
| 16M-BF | 16mm |
| 18M-BF | 18mm |
| 20M-BF | 20mm |
| 22M-BF | 22mm |
| 25M-BF | 25mm |
• Dimensions are for reference only. Subject to change.
