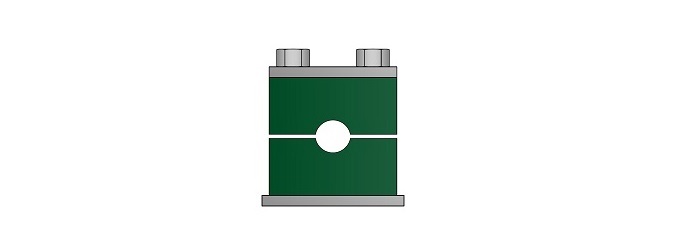

Heavy Series


  • Material: Polypropylene (PP)
  • Clamp Color: Green
  • Operating Temperature: -30°C to +90°C
  • Material of Top Plate: CS Galvanised
  • Material of bottom Plate: CS
  • Fixing Screw: Hex Head Bolt CS Zinc Plated

Application:

  • Tube Clamps are one of the best solution to assure the reliable tubing line support system for clamping, fastening and installing.

  • Hydraulic pipe clamps ensures the clamps can greatly reduce the impact, vibration and, reduce system noise, and they are used in various hydraulic systems.

  • The most typical pipe clamps are designed and made according to DIN 3015.






Standard series
FLUIDLOK

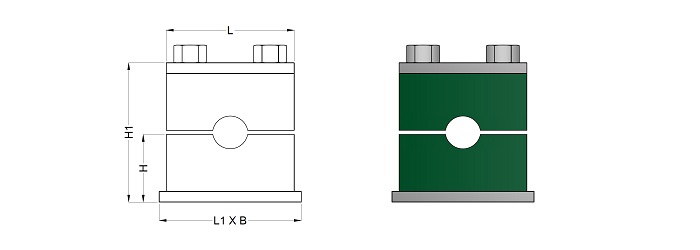

Part Number
Clamp Group Pipe OD Pipe Size
NB
L
(mm)
L1
(mm)
H
(mm)
H1
(mm)
B
(mm)
Hex Bolt
Metric Size Fractional Size
FPCH-6M 1 6 mm 1/4" - 55.0 70.0 23.0 48.0 32.0 M10 X 45
FPCH-8M 8 mm 5/16" - 55.0 70.0 23.0 48.0 32.0 M10 X 45
FPCH-10M 10 mm 3/8" - 55.0 70.0 23.0 48.0 32.0 M10 X 45
FPCH-12M 12 mm 1/2" 1/4" 55.0 70.0 23.0 48.0 32.0 M10 X 45
FPCH-14M 14 mm - - 55.0 70.0 23.0 48.0 32.0 M10 X 45
FPCH-15M 15 mm - - 55.0 70.0 23.0 48.0 32.0 M10 X 45
FPCH-16M 16 mm - 3/8" 55.0 70.0 23.0 48.0 32.0 M10 X 45
FPCH-18M 18 mm - - 55.0 70.0 23.0 48.0 32.0 M10 X 45
FPCH-19M 2 19 mm 3/4" - 70.0 85.0 30.0 60.0 32.0 M10 X 60
FPCH-20M 20 mm - 1/2" 70.0 85.0 30.0 60.0 32.0 M10 X 60
FPCH-22M 22 mm - - 70.0 85.0 30.0 60.0 32.0 M10 X 60
FPCH-25M 25 mm 1" 3/4" 70.0 85.0 30.0 60.0 32.0 M10 X 60
FPCH-26M 26 mm - - 70.0 85.0 30.0 60.0 32.0 M10 X 60
FPCH-28M 28 mm - - 70.0 85.0 30.0 60.0 32.0 M10 X 60
FPCH-30M 3 30 mm - - 85.0 100.0 39.0 78.0 32.0 M10 X 75
FPCH-33M 33 mm - 1" 85.0 100.0 39.0 78.0 32.0 M10 X 75
FPCH-35M 35 mm - - 85.0 100.0 39.0 78.0 32.0 M10 X 75
FPCH-38M 38 mm 1.1/2" - 85.0 100.0 39.0 78.0 32.0 M10 X 100
FPCH-42M 4 42 mm - 1.1/4" 115.0 140.0 52.0 104.0 50.0 M10 X 100
FPCH-48M 48 mm - 1.1/2" 115.0 140.0 52.0 104.0 50.0 M10 X 100
FPCH-50M 50 mm 2" - 115.0 140.0 52.0 104.0 52.0 M10 X 100
FPCH-56M 56 mm - - 115.0 140.0 52.0 104.0 52.0 M10 X 100
FPCH-60M 60 mm - 2" 115.0 140.0 52.0 104.0 52.0 M10 X 100
FPCH-73M 5 73 mm - - 150.0 180.0 70.0 140.0 60.0 M10 X 140
FPCH-76M 76 mm - 3" 150.0 180.0 70.0 140.0 60.0 M10 X 140
FPCH-88.9M 88.9 mm - - 150.0 180.0 70.0 140.0 60.0 M10 X 140

• Dimensions are for reference only. Subject to change.
