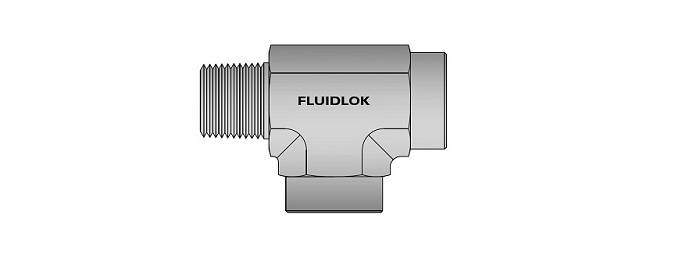

Pipe Street Tee (Ref. 5602)
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.

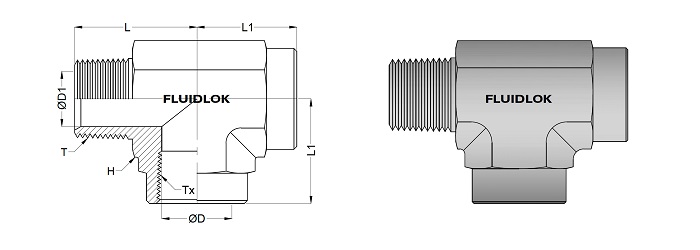

Pipe Street Tee
|
FLUIDLOK Part Number |
T (NPT-M) |
Tx (NPT-F) |
L (mm) |
L1 (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|
| PST-2N | 1/8" | 1/8" | 19.8 | 16.8 | 8.5 | 4.8 | 9/16 |
| PST-4N | 1/4" | 1/4" | 27.7 | 22.3 | 11.0 | 7.1 | 3/4 |
| PST-6N | 3/8" | 3/8" | 31.0 | 25.9 | 14.5 | 10.3 | 7/8 |
| PST-8N | 1/2" | 1/2" | 37.3 | 31.2 | 17.8 | 13.5 | 1.1/16 |
| PST-12N | 3/4" | 3/4" | 40.4 | 34.5 | 23.2 | 18.3 | 1.3/8 |
| PST-16N | 1" | 1" | 50.0 | 41.1 | 23.5 | 23.8 | 1.5/8 |
| PST-20N | 1.1/4" | 1.1/4" | 60.4 | 45 | 37.8 | 31.7 | 2 |
| PST-24N | 1.1/2" | 1.1/2" | 67.0 | 52.8 | 43.8 | 38.1 | 2.3/8 |
| PST-32N | 2" | 2" | 76.2 | 60.7 | 55.9 | 49.2 | 2.13/16 |
• Dimensions are for reference only. Subject to change.
