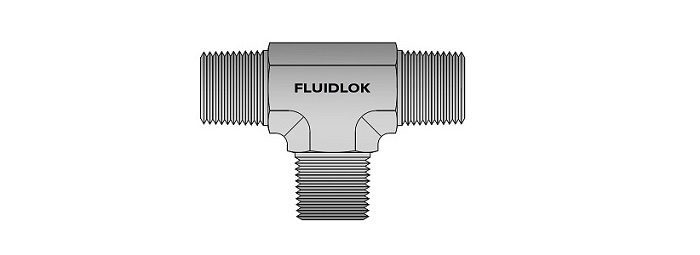

Male Pipe Tee (Ref. 5600)
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.

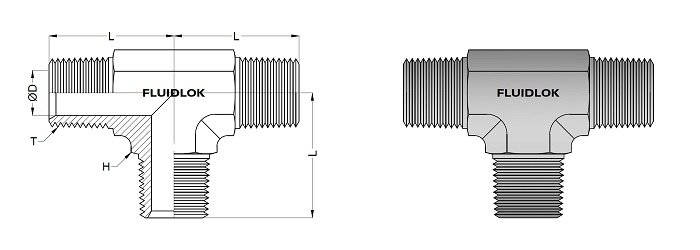

Male Pipe Tee
|
FLUIDLOK Part Number |
T (NPT) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|
| PMT-2N | 1/8" | 19.8 | 4.7 | 7/16 |
| PMT-4N | 1/4" | 27.7 | 7.1 | 9/16 |
| PMT-6N | 3/8" | 31.0 | 10.3 | 3/4 |
| PMT-8N | 1/2" | 37.3 | 13.5 | 7/8 |
| PMT-12N | 3/4" | 40.4 | 18.3 | 1.1/16 |
| PMT-16N | 1" | 50.0 | 23.8 | 1.3/8 |
| PMT-20N | 1.1/4" | 56.4 | 31.7 | 1.3/4 |
• Dimensions are for reference only. Subject to change.
