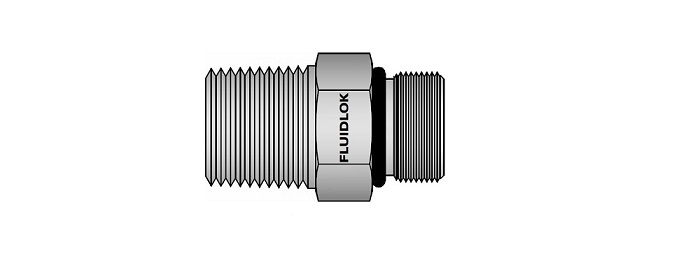

Hex Nipple - NPT X UF (Ref. 6401)
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.

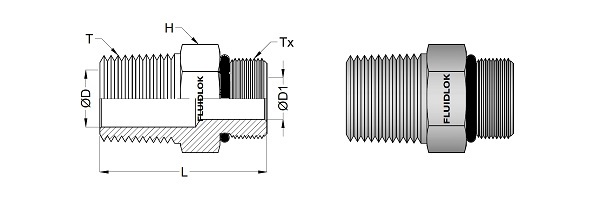

Hex Nipple - NPT X UF
|
FLUIDLOK Part Number |
T (NPT) |
Tx |
Tx (UNF/UN-2A) |
L (mm) |
∅ D (mm) |
∅ d (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|
| PHN-2N-4UF | 1/8" | 1/4" | 7/16"-20 | 26.4 | 4.4 | 4.4 | 9/16 |
| PHN-2N-6UF | 1/8" | 3/8" | 9/16"-18 | 26.4 | 4.8 | 7.5 | 11/16 |
| PHN-2N-5UF | 1/8" | 5/16" | 1/2"-20 | 25.9 | 4.8 | 6.0 | 5/8 |
| PHN-4N-4UF | 1/4" | 1/4" | 7/16"-20 | 31.5 | 7.1 | 4.4 | 9/16 |
| PHN-4N-5UF | 1/4" | 5/16" | 7/8"-14 | 30.5 | 7.1 | 6.0 | 5/8 |
| PHN-4N-6UF | 1/4" | 3/8" | 9/16"-18 | 32.5 | 7.1 | 7.4 | 11/16 |
| PHN-4N-8UF | 1/4" | 1/2" | 3/4"-16 | 35.0 | 7.1 | 9.9 | 7/8 |
| PHN-6N-6UF | 3/8" | 3/8" | 9/16"-18 | 31.0 | 10.3 | 7.1 | 3/4 |
| PHN-6N-8UF | 3/8" | 1/2" | 3/4"-16 | 35.0 | 9.9 | 9.9 | 7/8 |
| PHN-6N-10UF | 3/8" | 5/8" | 7/8"-14 | 37.6 | 10.3 | 12.3 | 1 |
| PHN-6N-12UF | 3/8" | 3/4" | 1.1/16"-12 | 39.4 | 10.3 | 15.5 | 1.1/4 |
| PHN-8N-6UF | 1/2" | 3/8" | 9/16"-18 | 37.6 | 13.5 | 7.1 | 7/8 |
| PHN-8N-8UF | 1/2" | 1/2" | 3/4"-16 | 39.6 | 13.5 | 9.9 | 7/8 |
| PHN-8N-10UF | 1/2" | 5/8" | 7/8"-14 | 43.0 | 13.5 | 12.3 | 1 |
| PHN-8N-12UF | 1/2" | 3/4" | 1.1/16"-12 | 46.7 | 13.5 | 15.5 | 1.1/4 |
| PHN-12N-8UF | 3/4" | 1/2" | 3/4"-16 | 40.0 | 18.3 | 9.9 | 1.1/8 |
| PHN-12N-10UF | 3/4" | 5/8" | 7/8"-14 | 41.6 | 18.3 | 12.3 | 1.1/8 |
| PHN-12N-12UF | 3/4" | 3/4" | 1.1/16"-12 | 46.7 | 18.3 | 15.5 | 1.1/4 |
| PHN-12N-14UF | 3/4" | 7/8" | 1.3/16"-12 | 44.0 | 18.3 | 18.3 | 1.3/8 |
| PHN-12N-16UF | 3/4" | 1" | 1.5/16"-12 | 49.5 | 18.3 | 21.4 | 1.1/2 |
| PHN-16N-12UF | 1" | 3/4" | 1.1/16"-12 | 49.5 | 23.8 | 15.5 | 1.3/8 |
| PHN-16N-16UF | 1" | 1" | 1.5/16"-12 | 52.0 | 23.8 | 21.4 | 1.1/2 |
| PHN-16N-20UF | 1" | 1.1/2" | 1.7/8"-12 | 55.9 | 23.8 | 33.3 | 2.1/8 |
| PHN-20N-20UF | 1.1/4" | 1.1/4" | 1.5/8"-12 | 55.1 | 31.7 | 27.4 | 1.7/8 |
| PHN-20N-24UF | 1.1/4" | 1.1/2" | 1.7/8"-12 | 56.5 | 31.7 | 33.3 | 2.1/8 |
| PHN-24N-24UF | 1.1/2" | 1.1/2" | 1.7/8"-12 | 57.9 | 38.1 | 33.3 | 2.1/8 |
| PHN-32N-32UF | 2" | 2" | 2.1/2"-12 | 62.8 | 49.2 | 45.2 | 2.3/4 |
• Dimensions are for reference only. Subject to change.
