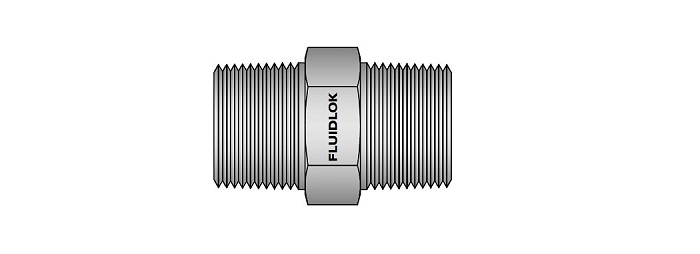

Hex Nipple - NPT (Ref. 5404)
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.

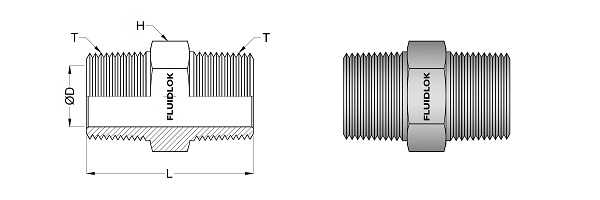

Hex Nipple - NPT X NPT
|
FLUIDLOK Part Number |
T (NPT) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|
| PHN-2N | 1/8" | 26.9 | 4.8 | 7/16 |
| PHN-4N | 1/4" | 36.8 | 7.1 | 5/8 |
| PHN-6N | 3/8" | 36.8 | 10.3 | 3/4 |
| PHN-8N | 1/2" | 48.0 | 13.5 | 7/8 |
| PHN-12N | 3/4" | 49.8 | 18.3 | 1.1/8 |
| PHN-16N | 1" | 59.4 | 23.8 | 1.3/8 |
| PHN-20N | 1.1/4" | 63.0 | 31.7 | 1.3/4 |
| PHN-24N | 1.1/2" | 66.3 | 38.1 | 2 |
| PHN-32N | 2" | 71.6 | 49.2 | 2.1/2 |
• Dimensions are for reference only. Subject to change.
