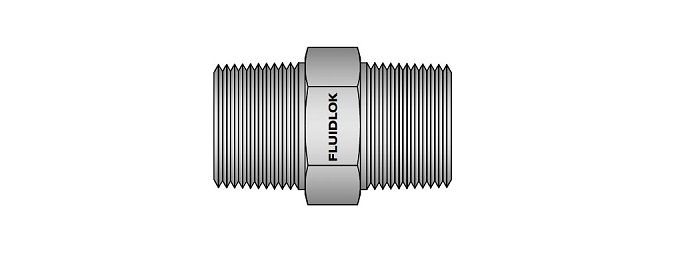

Hex Nipple - BSPT X BSPT (Ref. 9000)
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.

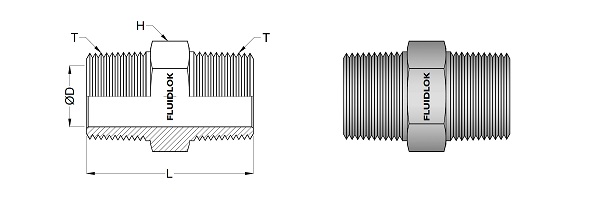

Hex Nipple - BSPT X BSPT
|
FLUIDLOK Part Number |
T (BSPT) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|
| PHN-2RT | 1/8' | 26.92 | 4.8 | 7/16 |
| PHN-4RT | 1/4" | 36.83 | 7.1 | 5/8 |
| PHN-6RT | 3/8" | 36.83 | 10.31 | 3/4 |
| PHN-8RT | 1/2" | 48.00 | 13.49 | 7/8 |
| PHN-12RT | 3/4" | 49.78 | 18.26 | 1.1/8 |
| PHN-16RT | 1" | 59.43 | 23.83 | 1.3/8 |
| PHN-20RT | 1.1/4" | 62.99 | 31.75 | 1.3/4 |
| PHN-24RT | 1.1/2" | 66.29 | 38.1 | 2 |
| PHN-32N | 2.1/2" | 2.1/0 | 2.1/1 | 2.1/2 |
• Dimensions are for reference only. Subject to change.
