Hex Long Nipple - NPT (Ref. 5404L)
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.

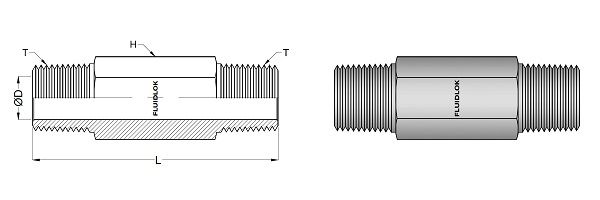

Hex Long Nipple - NPT X NPT
|
FLUIDLOK Part Number |
T (NPT) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|
| PHLN-2 | 1/8" | 38.1 | 4.8 | 7/16 |
| PHLN-2 | 1/8" | 50.8 | 4.8 | 7/16 |
| PHLN-2 | 1/8" | 63.5 | 4.8 | 7/16 |
| PHLN-2 | 1/8" | 76.2 | 4.8 | 7/16 |
| PHLN-2 | 1/8" | 101.6 | 4.8 | 7/16 |
| PHLN-2 | 1/8" | 114.3 | 4.8 | 7/16 |
| PHLN-2 | 1/8" | 127.0 | 4.8 | 7/16 |
| PHLN-2 | 1/8" | 152.4 | 4.8 | 7/16 |
| PHLN-4 | 1/4" | 38.1 | 7.1 | 5/8 |
| PHLN-4 | 1/4" | 50.8 | 7.1 | 5/8 |
| PHLN-4 | 1/4" | 63.5 | 7.1 | 5/8 |
| PHLN-4 | 1/4" | 76.2 | 7.1 | 5/8 |
| PHLN-6 | 3/8" | 50.8 | 10.3 | 3/4 |
| PHLN-6 | 3/8" | 63.5 | 10.3 | 3/4 |
| PHLN-6 | 3/8" | 76.2 | 10.3 | 3/4 |
| PHLN-6 | 3/8" | 101.6 | 10.3 | 3/4 |
| PHLN-8 | 1/2" | 50.8 | 13.5 | 7/8 |
| PHLN-8 | 1/2" | 63.5 | 13.5 | 7/8 |
| PHLN-8 | 1/2" | 76.2 | 13.5 | 7/8 |
| PHLN-8 | 1/2" | 101.6 | 13.5 | 7/8 |
| PHLN-8 | 1/2" | 114.3 | 13.5 | 7/8 |
| PHLN-8 | 1/2" | 127.0 | 13.5 | 7/8 |
| PHLN-8 | 1/2" | 152.4 | 13.5 | 7/8 |
| PHLN-12 | 3/4" | 50.8 | 18.3 | 1.1/8 |
| PHLN-12 | 3/4" | 63.5 | 18.3 | 1.1/8 |
| PHLN-12 | 3/4" | 76.2 | 18.3 | 1.1/8 |
| PHLN-12 | 3/4" | 101.6 | 18.3 | 1.1/8 |
| PHLN-12 | 3/4" | 114.3 | 18.3 | 1.1/8 |
| PHLN-12 | 3/4" | 127.0 | 18.3 | 1.1/8 |
| PHLN-12 | 3/4" | 152.4 | 18.3 | 1.1/8 |
| PHLN-12 | 3/4" | 165.1 | 18.3 | 1.1/8 |
| PHLN-12 | 3/4" | 203.2 | 18.3 | 1.1/8 |
| PHLN-16 | 1" | 63.5 | 23.8 | 1.3/8 |
| PHLN-16 | 1" | 76.2 | 23.8 | 1.3/8 |
| PHLN-16 | 1" | 82.55 | 23.8 | 1.3/8 |
| PHLN-16 | 1" | 95.25 | 23.8 | 1.3/8 |
| PHLN-16 | 1" | 101.6 | 23.8 | 1.3/8 |
| PHLN-16 | 1" | 114.3 | 23.8 | 1.3/8 |
| PHLN-16 | 1" | 127.0 | 23.8 | 1.3/8 |
| PHLN-16 | 1" | 152.4 | 23.8 | 1.3/8 |
| PHLN-20 | 1.1/4" | 76.2 | 31.7 | 1.3/4 |
| PHLN-20 | 1.1/4" | 88.9 | 31.7 | 1.3/4 |
| PHLN-20 | 1.1/4" | 101.6 | 31.7 | 1.3/4 |
| PHLN-20 | 1.1/4" | 152.4 | 31.7 | 1.3/4 |
| PHLN-20 | 1.1/4" | 203.2 | 31.7 | 1.3/4 |
| PHLN-24 | 1.1/2" | 101.6 | 38.1 | 2 |
| PHLN-24 | 1.1/2" | 152.4 | 38.1 | 2 |
• Dimensions are for reference only. Subject to change.
