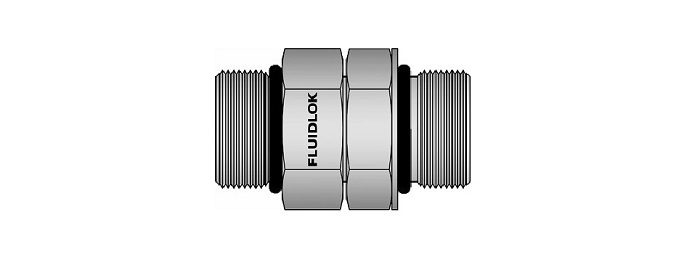

Adjustable Hex Nipple - UF (Ref. 6407)
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.

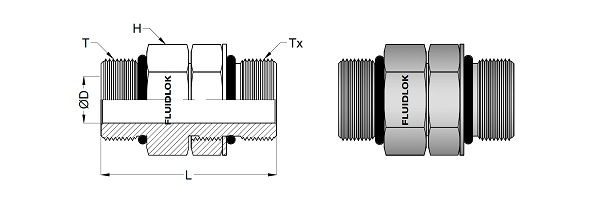

Adjustable Hex Nipple - UF
|
FLUIDLOK Part Number |
T |
T (UNF/UN-2A) |
Tx |
Tx (UNF/UN-2A) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|
| PAHN-4UF | 1/4" | 7/16"-20 | 1/4" | 7/16"-20 | 34.6 | 4.4 | 9/16 |
| PAHN-6UF | 3/8" | 9/16"-18 | 3/8" | 9/16"-18 | 37.8 | 7.5 | 11/16 |
| PAHN-8UF | 1/2" | 3/4"-16 | 1/2" | 3/4"-16 | 40.0 | 9.9 | 7/8 |
| PAHN-10UF-6UF | 5/8" | 7/8"-14 | 3/8" | 9/16"-18 | 39.8 | 12.3 | 1 |
| PAHN-10UF | 5/8" | 7/8"-14 | 5/8" | 7/8"-14 | 46.1 | 12.3 | 1 |
| PAHN-12UF-10UF | 3/4" | 1.1/16"-12 | 5/8" | 7/8"-14 | 50.5 | 15.5 | 1.1/4 |
| PAHN-12UF | 3/4" | 1.1/16"-12 | 3/4" | 1.1/16"-12 | 58.0 | 15.5 | 1.1/4 |
| PAHN-16UF-12UF | 1" | 1.5/16"-12 | 3/4" | 1.1/16"-12 | 58.0 | 21.4 | 1.1/2 |
| PAHN-16UF | 1" | 1.5/16"-12 | 1" | 1.5/16"-12 | 58.0 | 21.4 | 1.1/2 |
| PAHN-20UF-12UF | 1.1/4" | 1.5/8"-12 | 3/4" | 1.1/16"-12 | 57.1 | 27.5 | 1.7/8 |
| PAHN-20UF | 1.1/4" | 1.5/8"-12 | 1.1/4" | 1.5/8"-12 | 57.1 | 27.5 | 1.7/8 |
| PAHN-24UF-16UF | 1.1/2" | 1.7/8"-12 | 1" | 1.5/16"-12 | 61.5 | 33.3 | 2.1/8 |
| PAHN-24UF | 1.1/2" | 1.7/8"-12 | 1.1/2" | 1.7/8"-12 | 61.5 | 33.3 | 2.1/8 |
| PAHN-32UF | 2" | 2.1/2"-12 | 2" | 2.1/2"-12 | 65.8 | 45.0 | 2.3/4 |
• Dimensions are for reference only. Subject to change.
