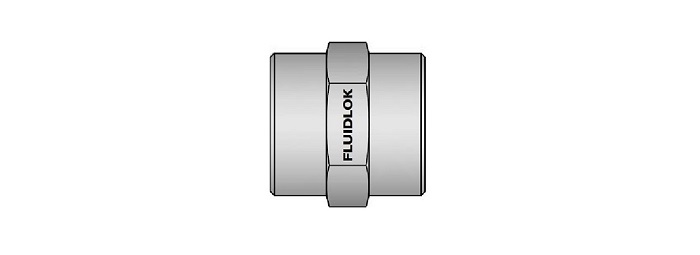

Reducing Hex Coupling - NPT (Ref. 5000)
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.

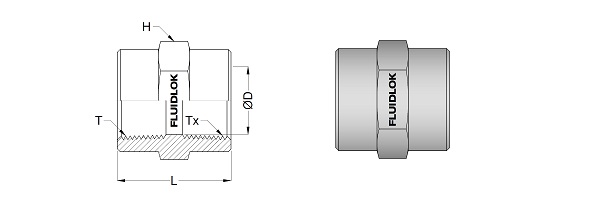

Reducing Hex Coupling - NPT X NPT
|
FLUIDLOK Part Number |
T (NPT) |
Tx (NPT) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|
| 4N-PHRC-2N | 1/4" | 1/8" | 28.7 | 8.5 | 3/4 |
| 6N-PHRC-2N | 3/8" | 1/8" | 28.7 | 23.2 | 7/8 |
| 6N-PHRC-4N | 3/8" | 1/4" | 28.7 | 11.0 | 7/8 |
| 8N-PHRC-4N | 1/2" | 1/4" | 38.1 | 11.0 | 1.1/8 |
| 8N-PHRC-6N | 1/2" | 3/8" | 38.1 | 14.5 | 1.1/8 |
| 12N-PHRC-4N | 3/4" | 1/4" | 35.6 | 11.0 | 1.3/8 |
| 12N-PHRC-6N | 3/4" | 3/8" | 38.9 | 14.5 | 1.3/8 |
| 12N-PHRC-8N | 3/4" | 1/2" | 38.9 | 17.8 | 1.3/8 |
| 16N-PHRC-8N | 1" | 1/2" | 48.0 | 17.8 | 1.5/8 |
| 16N-PHRC-12N | 1" | 3/4" | 48.0 | 23.2 | 1.5/8 |
| 20N-PHRC-16N | 1.1/4" | 1" | 49.0 | 28.5 | 2 |
• Dimensions are for reference only. Subject to change.
