Reducing Bushing - NPT X BSPT
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.
Reducing Bushing - NPT X BSPT
|

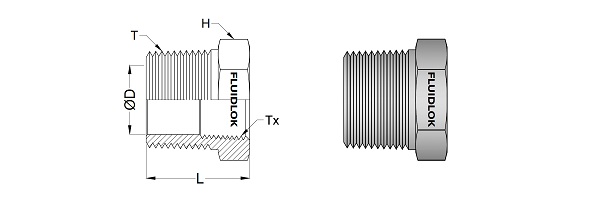

FLUIDLOK Part Number |
T (NPT-M) |
Tx (BSPT-F) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|
| 4N-PRB-2RT | 1/4" | 1/8" | 21.6 | 8.4 | 5/8 |
| 6N-PRB-2RT | 3/8" | 1/8" | 21.6 | 8.4 | 3/4 |
| 6N-PRB-4RT | 3/8" | 1/4" | 21.6 | 8.4 | 3/4 |
| 8N-PRB-2RT | 1/2" | 1/8" | 27.9 | 8.4 | 7/8 |
| 8N-PRB-4RT | 1/2" | 1/4" | 27.9 | 10.9 | 7/8 |
| 8N-PRB-6RT | 1/2" | 3/8" | 27.9 | 14.5 | 7/8 |
| 12N-PRB-2RT | 3/4" | 1/8" | 29.7 | 8.4 | 1.1/8 |
| 12N-PRB-4RT | 3/4" | 1/4" | 29.7 | 10.9 | 1.1/8 |
| 12N-PRB-6RT | 3/4" | 3/8" | 29.7 | 14.5 | 1.1/8 |
| 12N-PRB-8RT | 3/4" | 1/2" | 29.7 | 17.8 | 1.1/8 |
| 16N-PRB-2RT | 1" | 1/8" | 34.5 | 8.4 | 1.3/8 |
| 16N-PRB-4RT | 1" | 1/4" | 34.5 | 10.9 | 1.3/8 |
| 16N-PRB-6RT | 1" | 3/8" | 34.5 | 14.5 | 1.3/8 |
| 16N-PRB-8RT | 1" | 1/2" | 34.5 | 17.8 | 1.3/8 |
| 16N-PRB-12RT | 1" | 3/4" | 34.5 | 23.2 | 1.3/8 |
| 20N-PRB-4RT | 1.1/4" | 1/4" | 37.3 | 10.9 | 1.3/4 |
| 20N-PRB-6RT | 1.1/4" | 3/8" | 37.3 | 14.5 | 1.3/4 |
| 20N-PRB-8RT | 1.1/4" | 1/2" | 37.3 | 17.8 | 1.3/4 |
| 20N-PRB-12RT | 1.1/4" | 3/4" | 37.3 | 23.2 | 1.3/4 |
| 20N-PRB-16RT | 1.1/4" | 1" | 37.3 | 28.5 | 1.3/4 |
| 24N-PRB-4RT | 1.1/2" | 1/4" | 39.4 | 10.9 | 2 |
| 24N-PRB-6RT | 1.1/2" | 3/8" | 39.4 | 14.5 | 2 |
| 24N-PRB-8RT | 1.1/2" | 1/2" | 39.4 | 17.8 | 2 |
| 24N-PRB-12RT | 1.1/2" | 3/4" | 39.4 | 23.2 | 2 |
| 24N-PRB-16RT | 1.1/2" | 1" | 39.4 | 28.5 | 2 |
| 24N-PRB-20RT | 1.1/2" | 1.1/4" | 39.4 | 37.6 | 2 |
| 32N-PRB-8RT | 2" | 1/2" | 44.4 | 17.8 | 2.1/2 |
| 32N-PRB-12RT | 2" | 3/4" | 44.4 | 23.2 | 2.1/2 |
| 32N-PRB-16RT | 2" | 1" | 44.4 | 28.5 | 2.1/2 |
| 32N-PRB-20RT | 2" | 1.1/4" | 44.4 | 37.6 | 2.1/2 |
| 32N-PRB-24RT | 2" | 1.1/2" | 44.4 | 43.7 | 2.1/2 |
• Dimensions are for reference only. Subject to change.
