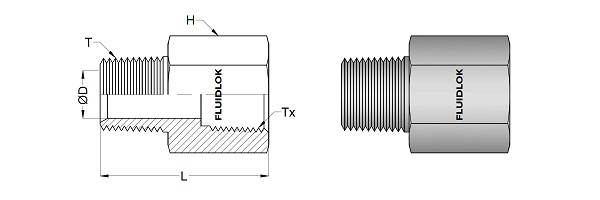

Reducing Adaptor - NPT X NPT (Ref. 5405)

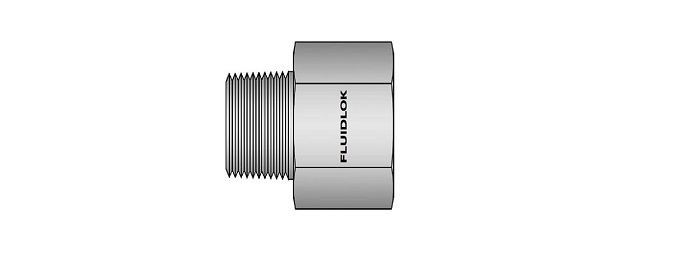

Reducing Adaptor - NPT X NPT
|
FLUIDLOK Part Number |
T (NPT-M) |
Tx (NPT-F) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|
| 2N-PRA-4N | 1/8" | 1/4" | 31.5 | 4.8 | 3/4 |
| 2N-PRA-6N | 1/8" | 3/8" | 32.8 | 4.8 | 7/8 |
| 2N-PRA-8N | 1/8" | 1/2" | 38.1 | 10.3 | 1.1/16 |
| 4N-PRA-2N | 1/4" | 1/8" | 31.5 | 4.7 | 3/4 |
| 4N-PRA-6N | 1/4" | 3/8" | 36.6 | 7.1 | 7/8 |
| 4N-PRA-8N | 1/4" | 1/2" | 43.0 | 7.1 | 1.1/8 |
| 4N-PRA-12N | 1/4" | 3/4" | 49.0 | 7.1 | 1.3/8 |
| 6N-PRA-4N | 3/8" | 1/4" | 31.7 | 10.3 | 3/4 |
| 6N-PRA-8N | 3/8" | 1/2" | 42.7 | 10.3 | 1.1/16 |
| 6N-PRA-12N | 3/8" | 3/4" | 44.7 | 10.3 | 1.3/8 |
| 8N-PRA-4N | 1/2" | 1/4" | 38.1 | 11.0 | 7/8 |
| 8N-PRA-6N | 1/2" | 3/8" | 47.0 | 13.5 | 7/8 |
| 8N-PRA-12N | 1/2" | 3/4" | 49.0 | 13.5 | 1.3/8 |
| 8N-PRA-16N | 1/2" | 1" | 55.9 | 13.5 | 1.5/8 |
| 12N-PRA-6N | 3/4" | 3/8" | 38.1 | 14.5 | 1.1/16 |
| 12N-PRA-8N | 3/4" | 1/2" | 39.9 | 17.8 | 1.1/16 |
| 12N-PRA-16N | 3/4" | 1" | 55.4 | 18.3 | 1.5/8 |
| 12N-PRA-20N | 3/4" | 1.1/4" | 58.9 | 18.3 | 2 |
| 16N-PRA-8N | 1" | 1/2" | 41.1 | 17.8 | 1.3/8 |
| 16N-PRA-12N | 1" | 3/4" | 53.8 | 23.2 | 1.3/8 |
| 16N-PRA-20N | 1" | 1.1/4" | 62.5 | 23.8 | 2 |
| 16N-PRA-24N | 1" | 1.1/2" | 64.5 | 23.8 | 2.3/8 |
| 20N-PRA-12N | 1.1/4" | 3/4" | 62.7 | 23.2 | 2 |
| 20N-PRA-16N | 1.1/4" | 1" | 63.2 | 28.5 | 2 |
| 20N-PRA-24N | 1.1/4" | 1.1/2" | 64.0 | 28.5 | 2.3/8 |
| 20N-PRA-32N | 1.1/4" | 2" | 67.3 | 28.5 | 2.1/2 |
| 24N-PRA-20N | 1.1/2" | 1.1/4" | 64.0 | 37.8 | 2 |
| 24N-PRA-32N | 1.1/2" | 2" | 61.7 | 38.1 | 2.1/2 |
• Dimensions are for reference only. Subject to change.
