Reducing Adaptor - BSPT X BSPT
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.

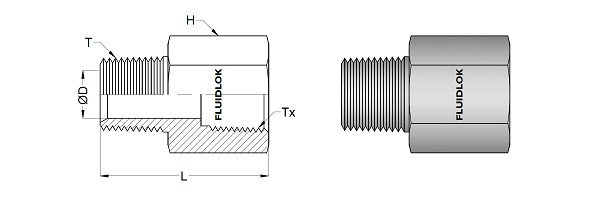

Reducing Adaptor - BSPT X BSPT
|
FLUIDLOK Part Number |
T (BSPT-M) |
Tx (BSPT-F) |
A (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|
| 2RT-PRA-4RT | 1/8" | 1/4" | 31.49 | 4.80 | 3/4 |
| 2RT-PRA-6RT | 1/8" | 3/8" | 32.76 | 4.80 | 7/8 |
| 2RT-PRA-8RT | 1/8" | 1/2" | 38.10 | 10.31 | 1.1/16 |
| 4RT-PRA-2RT | 1/4" | 1/8" | 31.49 | 4.70 | 3/4 |
| 4RT-PRA-6RT | 1/4" | 3/8" | 36.57 | 7.10 | 7/8 |
| 4RT-PRA-8RT | 1/4" | 1/2" | 43.00 | 7.10 | 1.1/8 |
| 4RT-PRA-12RT | 1/4" | 3/4" | 49.02 | 7.10 | 1.3/8 |
| 6RT-PRA-4RT | 3/8" | 1/4" | 31.75 | 10.31 | 3/4 |
| 6RT-PRA-8RT | 3/8" | 1/2" | 42.67 | 10.31 | 1.1/16 |
| 6RT-PRA-12RT | 3/8" | 3/4" | 44.70 | 10.31 | 1.3/8 |
| 8RT-PRA-4RT | 1/2" | 1/4" | 38.10 | 11 | 7/8 |
| 8RT-PRA-6RT | 1/2" | 3/8" | 46.99 | 13.49 | 7/8 |
| 8RT-PRA-12RT | 1/2" | 3/4" | 49.02 | 13.49 | 1.3/8 |
| 8RT-PRA-16RT | 1/2" | 1" | 55.88 | 13.49 | 1.5/8 |
| 12RT-PRA-6RT | 3/4" | 3/8" | 38.10 | 14.50 | 1.1/16 |
| 12RT-PRA-8RT | 3/4" | 1/2" | 39.87 | 17.80 | 1.1/16 |
| 12RT-PRA-16RT | 3/4" | 1" | 55.37 | 18.26 | 1.5/8 |
| 12RT-PRA-20RT | 3/4" | 1.1/4" | 58.92 | 18.26 | 2 |
| 16RT-PRA-8RT | 1" | 1/2" | 41.14 | 17.80 | 1.3/8 |
| 16RT-PRA-12RT | 1" | 3/4" | 53.84 | 23.18 | 1.3/8 |
| 16RT-PRA-20RT | 1" | 1.1/4" | 62.48 | 23.83 | 2 |
| 16RT-PRA-24RT | 1" | 1.1/2" | 64.51 | 23.83 | 2.3/8 |
| 20RT-PRA-12RT | 1.1/4" | 3/4" | 62.73 | 23.18 | 2 |
| 20RT-PRA-16RT | 1.1/4" | 1" | 63.24 | 28.50 | 2 |
| 20RT-PRA-24RT | 1.1/4" | 1.1/2" | 64.00 | 28.50 | 2.3/8 |
| 20RT-PRA-32RT | 1.1/4" | 2" | 67.31 | 28.50 | 2.1/2 |
| 24RT-PRA-20RT | 1.1/2" | 1.1/4" | 64.00 | 37.80 | 2 |
| 24RT-PRA-32RT | 1.1/2" | 2" | 61.72 | 38.10 | 2.1/2 |
• Dimensions are for reference only. Subject to change.
