Adaptor - UF (Ref. 6405)
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.

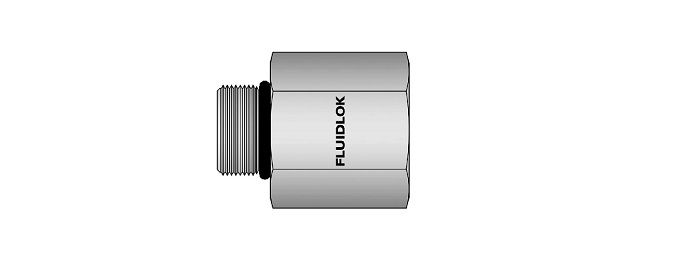

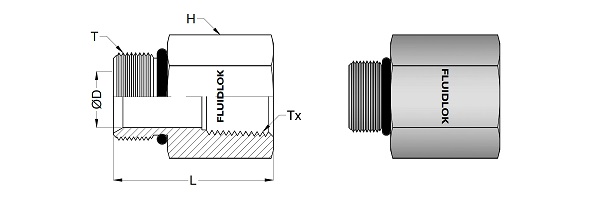

Pipe Adaptor - UF
|
FLUIDLOK Part Number |
T |
T (UNF/UN-2A) |
Tx (NPT-F) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|---|
| PA-2N-4UF | 1/4" | 7/16"-20 | 1/8" | 25.4 | 4.4 | 9/16 |
| PA-4N-4UF | 1/4" | 7/16"-20 | 1/4" | 31.25 | 4.4 | 3/4 |
| PA-4N-6UF | 3/8" | 9/16"-18 | 1/4" | 30.0 | 7.5 | 3/4 |
| PA-4N-8UF | 1/2" | 3/4"-16 | 1/4" | 30.7 | 9.9 | 7/8 |
| PA-6N-4UF | 1/4" | 7/16"-20 | 3/8" | 32.5 | 4.4 | 7/8 |
| PA-6N-6UF | 3/8" | 9/16"-18 | 3/8" | 32.5 | 7.5 | 7/8 |
| PA-8N-6UF | 3/8" | 9/16"-18 | 1/2" | 39.5 | 7.5 | 1.1/8 |
| PA-8N-8UF | 1/2" | 3/4"-16 | 1/2" | 40.4 | 9.9 | 1.1/8 |
| PA-8N-10UF | 5/8" | 7/8"-14 | 1/2" | 39.5 | 12.3 | 1.1/8 |
| PA-8N-12UF | 3/4" | 1.1/16"-12 | 1/2" | 41.7 | 15.4 | 1.1/4 |
| PA-12N-8UF | 1/2" | 3/4"-16 | 3/4" | 43.7 | 9.9 | 1.3/8 |
| PA-12N-12UF | 3/4" | 1.1/16"-12 | 3/4" | 43.7 | 15.4 | 1.3/8 |
• Dimensions are for reference only. Subject to change.
