Adaptor - NPT X NPT (Ref. 5405)
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.

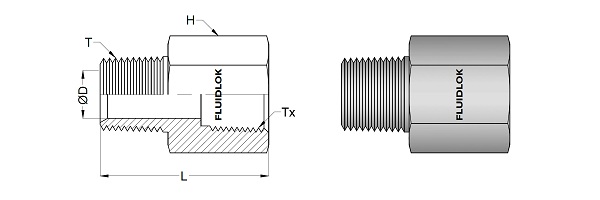

Adaptor - NPT X NPT
|
FLUIDLOK Part Number |
T (NPT-M) |
Tx (NPT-F) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|
| PA-2N | 1/8" | 1/8" | 26.4 | 4.8 | 9/16 |
| PA-4N | 1/4" | 1/4" | 36.6 | 7.1 | 3/4 |
| PA-6N | 3/8" | 3/8" | 36.6 | 9.7 | 7/8 |
| PA-8N | 1/2" | 1/2" | 47.5 | 11.9 | 1.1/16 |
| PA-12N | 3/4" | 3/4" | 55.4 | 15.7 | 1.5/16 |
| PA-16N | 1" | 1" | 62.5 | 22.4 | 1.5/8 |
| PA-20N | 1.1/4" | 1.1/4" | 63.2 | 28.5 | 2 |
| PA-24N | 1.1/2" | 1.1/2" | 64.3 | 38.1 | 2.3/8 |
| PA-32N | 2" | 2" | 67.6 | 49.2 | 2.7/8 |
• Dimensions are for reference only. Subject to change.
