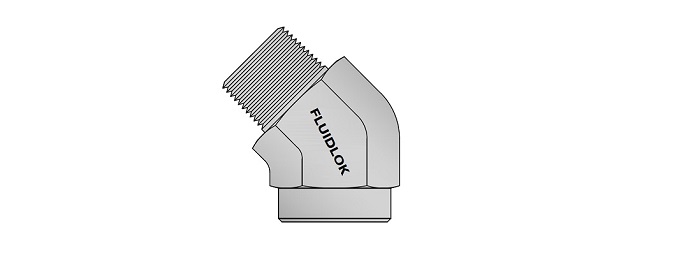

Street Pipe Elbow 45° - NPT (Ref. 5503)
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.

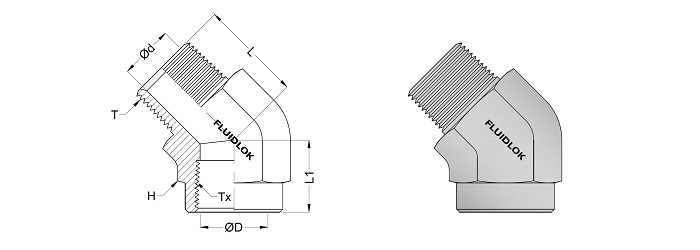

Street Pipe Elbow 45° - NPT
|
FLUIDLOK Part Number |
T (NPT-M) |
Tx (NPT-F) |
L (mm) |
L1 (mm) |
∅ d (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|
| PSE-2N-45 | 1/8" | 1/8" | 18.3 | 11.9 | 4.8 | 8.5 | 9/16 |
| PSE-4N-45 | 1/4" | 1/4" | 26.7 | 16.0 | 7.1 | 11.0 | 12/16 |
| PSE-6N-45 | 3/8" | 3/8" | 26.9 | 18.3 | 10.3 | 14.5 | 3/4 |
| PSE-8N-45 | 1/2" | 1/2" | 34.0 | 23.1 | 13.5 | 17.8 | 7/8 |
| PSE-12N-45 | 3/4" | 3/4" | 35.0 | 24.6 | 18.3 | 23.2 | 1.5/16 |
| PSE-16N-45 | 1" | 1" | 43.7 | 28.4 | 23.8 | 28.5 | 1.5/8 |
| PSE-20N-45 | 1.1/4" | 1.1/4" | 45.7 | 41.4 | 31.7 | 37.8 | 1.7/8 |
| PSE-24N-45 | 1.1/2" | 1.1/2" | 52.3 | 52.8 | 38.1 | 43.8 | 2.9/16 |
• Dimensions are for reference only. Subject to change.
