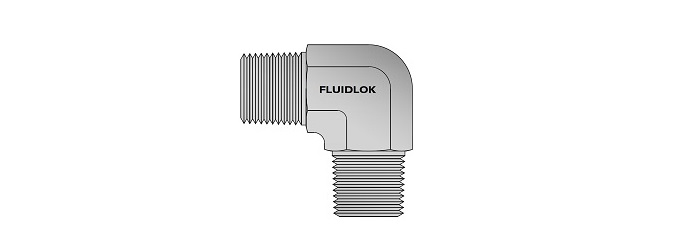

Male Pipe Elbow - NPT (Ref. 5500)
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.

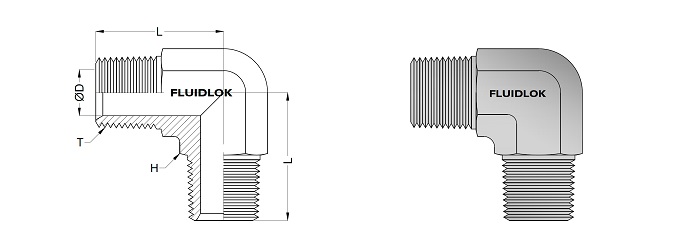

Male Pipe Elbow - NPT
|
FLUIDLOK Part Number |
T (NPT) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|
| PME-2N | 1/8" | 19.8 | 4.80 | 7/16 |
| PME-4N | 1/4" | 27.7 | 7.10 | 9/16 |
| PME-6N | 3/8" | 31.0 | 10.31 | 3/4 |
| PME-8N | 1/2" | 37.3 | 13.49 | 7/8 |
| PME-12N | 3/4" | 40.4 | 18.26 | 1.1/16 |
| PME-16N | 1" | 50.0 | 23.83 | 1.3/8 |
| PME-20N | 1.1/4" | 56.4 | 31.75 | 1.3/4 |
| PME-24N | 1.1/2" | 59.4 | 38.10 | 2 |
| PME-32N | 2" | 76.2 | 49.23 | 2.1/2 |
• Dimensions are for reference only. Subject to change.
