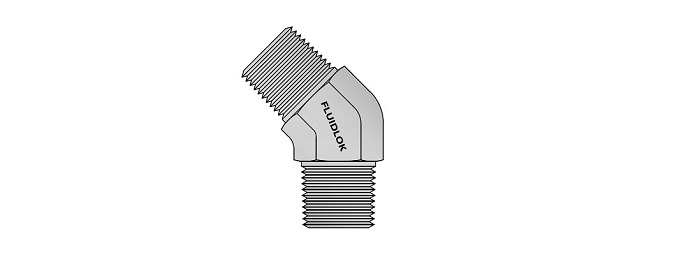

Male Pipe Elbow 45° - BSPT
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.
Male Pipe Elbow 45° - BSPT
|

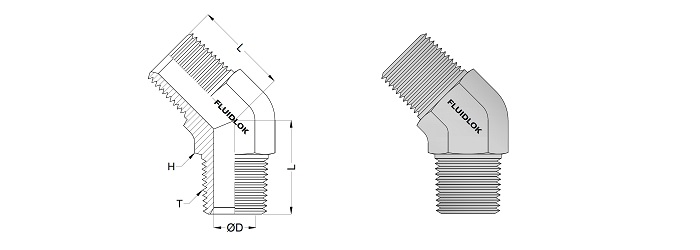

FLUIDLOK Part Number |
T (BSPT) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|
| PME-2RT-45 | 1/8" | 16.2 | 4.8 | 7/16 |
| PME-4RT-45 | 1/4" | 21.8 | 7.1 | 9/16 |
| PME-6RT-45 | 3/8" | 24.1 | 10.3 | 3/4 |
| PME-8RT-45 | 1/2" | 30.0 | 13.5 | 7/8 |
| PME-12RT-45 | 3/4" | 35.0 | 18.3 | 1.1/16 |
| PME-16RT-45 | 1" | 37.6 | 23.8 | 1.3/8 |
• Dimensions are for reference only. Subject to change.
