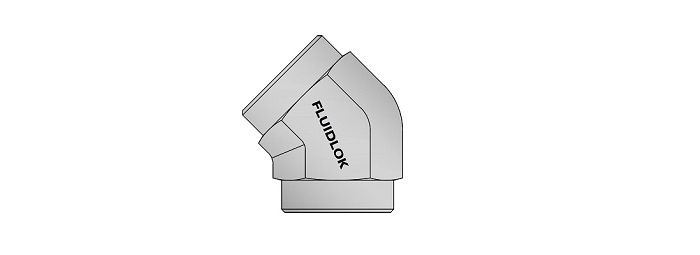

Female Pipe Elbow 45° - NPT (Ref. 5505)
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.

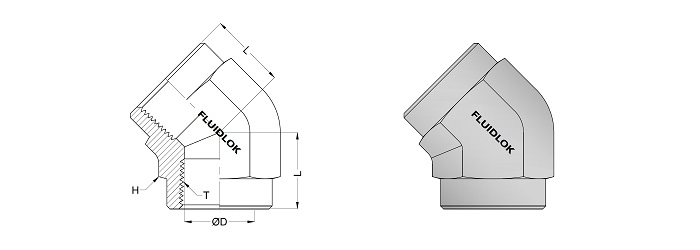

Female Pipe Elbow 45° - NPT
|
FLUIDLOK Part Number |
T (NPT) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|
| PFE-2N-45 | 1/8" | 12.7 | 8.50 | 9/16 |
| PFE-4N-45 | 1/4" | 17.5 | 11.00 | 3/4 |
| PFE-6N-45 | 3/8" | 19.0 | 14.50 | 7/8 |
| PFE-8N-45 | 1/2" | 23.9 | 17.80 | 1.1/16 |
| PFE-12N-45 | 3/4" | 25.4 | 23.18 | 1.3/8 |
| PFE-16N-45 | 1" | 30.2 | 28.50 | 1.5/8 |
| PFE-20N-45 | 1.1/4" | 36.6 | 37.81 | 2 |
• Dimensions are for reference only. Subject to change.
