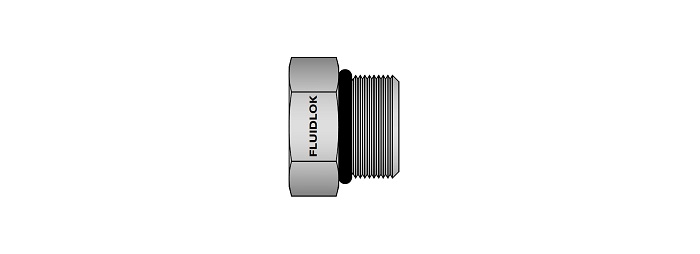

Solid Hex Plug - UF (Ref. 6408 Solid)
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.

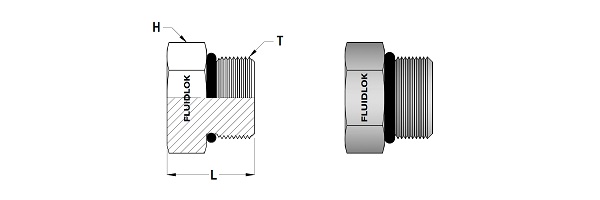

Solid Hex Plug - UF
|
FLUIDLOK Part Number |
T |
T (UNF/UN-2A) |
L (mm) |
H (Inch) |
|---|---|---|---|---|
| PSHP-2UF | 1/8" | 5/16"-24 | 15.2 | 7/16 |
| PSHP-3UF | 3/16" | 3/8"-24 | 15.2 | 1/2 |
| PSHP-4UF | 1/4" | 7/16"-20 | 17.0 | 9/16 |
| PSHP-5UF | 5/16" | 1/2"-20 | 17.0 | 5/8 |
| PSHP-6UF | 3/8" | 9/16"-18 | 18.5 | 11/16 |
| PSHP-8UF | 1/2" | 3/4"-16 | 20.3 | 7/8 |
| PSHP-10UF | 5/8" | 7/8"-14 | 23.6 | 1 |
| PSHP-12UF | 3/4" | 1.1/16"-12 | 27.7 | 1.1/4 |
| PSHP-14UF | 7/8" | 1.3/16"-12 | 27.7 | 1.3/8 |
| PSHP-16UF | 1" | 1.5/16"-12 | 28.4 | 1.1/2 |
| PSHP-20UF | 1.1/4" | 1.5/8"-12 | 30.5 | 1.11/16 |
| PSHP-24UF | 1.1/2" | 1.7/8"-12 | 32.3 | 2.1/8 |
| PSHP-32UF | 2" | 2.1/2"-12 | 36.3 | 2.3/4 |
• Dimensions are for reference only. Subject to change.
