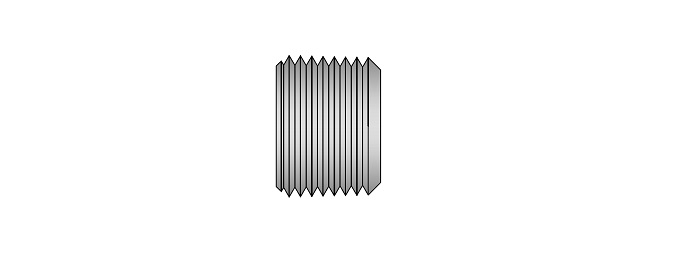

Hollow Hex Pipe Plug (Ref. 5406-HP)
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.
Hollow Hex Pipe Plug
|

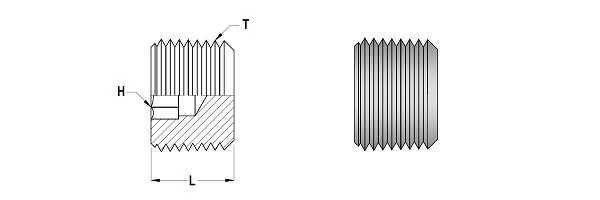

FLUIDLOK Part Number |
T (NPT) |
L (mm) |
H (Inch) |
|---|---|---|---|
| PHHP-2N | 1/8" | 7.6 | 3/16 |
| PHHP-4N | 1/4" | 11.7 | 1/4 |
| PHHP-6N | 3/8" | 11.7 | 5/16 |
| PHHP-8N | 1/2" | 15.5 | 3/8 |
| PHHP-12N | 3/4" | 15.7 | 9/16 |
| PHHP-16N | 1" | 19.6 | 5/8 |
| PHHP-20N | 1.1/4" | 21.1 | 3/4 |
| PHHP-24N | 1.1/2" | 21.1 | 1 |
| PHHP-32N | 2" | 21.1 | 1 |
• Dimensions are for reference only. Subject to change.
