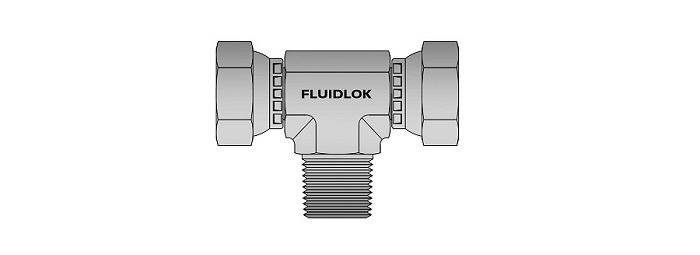

Pipe Swivel Male Branch Tee (Ref. 1601)
- Features: NPSM Female Swivel Fittings are to form a mechanical seal with NPTF Pipe Male Fittings.
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread.

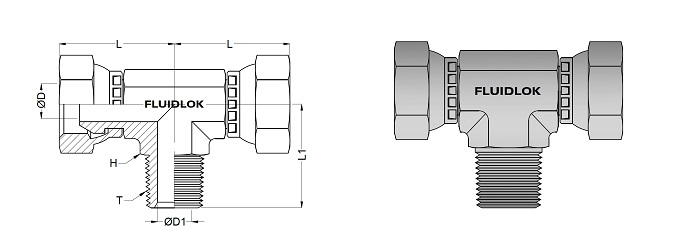

Pipe Swivel Male Branch Tee
|
FLUIDLOK Part Number |
T (NPT) |
FPS (NPSM) |
L (mm) |
L1 (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|
| PSMBT-2N-2FPS | 1/8" | 1/8" | 21.1 | 18.3 | 4.0 | 4.7 | 7/16 |
| PSMBT-4N-4FPS | 1/4" | 1/4" | 26.0 | 27.9 | 5.6 | 7.1 | 9/16 |
| PSMBT-4N-6FPS | 1/4" | 3/8" | 31.3 | 31.0 | 8.7 | 7.1 | 3/4 |
| PSMBT-6N-4FPS | 3/8" | 1/4" | 28.7 | 31.0 | 5.6 | 10.3 | 3/4 |
| PSMBT-6N-6FPS | 3/8" | 3/8" | 31.1 | 31.0 | 8.7 | 10.3 | 3/4 |
| PSMBT-8N-4FPS | 1/2" | 1/4" | 29.7 | 37.3 | 5.6 | 13.5 | 7/8 |
| PSMBT-8N-6FPS | 1/2" | 3/8" | 33.1 | 37.3 | 8.7 | 13.5 | 7/8 |
| PSMBT-8N-8FPS | 1/2" | 1/2" | 33.6 | 37.3 | 11.8 | 13.5 | 7/8 |
| PSMBT-12N-8FPS | 3/4" | 1/2" | 36.9 | 40.4 | 11.8 | 20.6 | 1.1/16 |
| PSMBT-12N-12PFS | 3/4" | 3/4" | 40.5 | 40.4 | 16.2 | 20.6 | 1.1/16 |
| PSMBT-12N-16FPS | 3/4" | 1" | 47.2 | 46.5 | 21.4 | 20.6 | 1.3/8 |
| PSMBT-16N-12FPS | 1" | 3/4" | 43.3 | 50.0 | 16.2 | 23.8 | 1.3/8 |
| PSMBT-16N-16FPS | 1" | 1" | 47.2 | 50.0 | 21.4 | 21.4 | 1.3/8 |
| PSMBT-20N-20FPS | 1.1/4" | 1.1/4" | 52.8 | 60.0 | 29.0 | 29.0 | 1.5/8 |
| PSMBT-24N-24FPS | 1.1/2" | 1.1/2" | 56.5 | 67.0 | 35.0 | 35.0 | 1.7/8 |
• Dimensions are for reference only. Subject to change.
