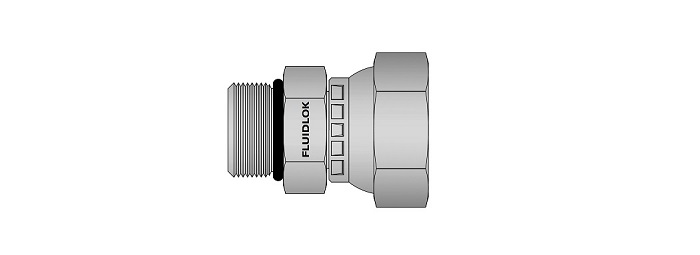

Pipe Swivel Male Adaptor - UF (Ref. 6900)
- Features: NPSM Female Swivel Fittings are to form a mechanical seal with NPTF Pipe Male Fittings.
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread.

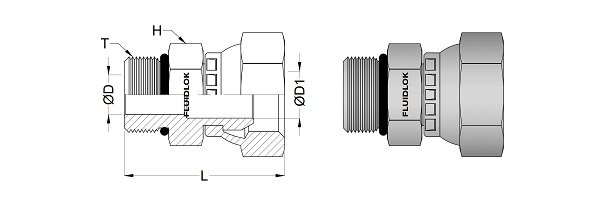

Pipe Swivel Male Adaptor - UF
|
FLUIDLOK Part Number |
T |
T (UNF/UN-2A) |
FPS (NPSM) |
L (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|
| PSMA-4UF-2FPS | 1/4" | 7/16"-20 | 1/8" | 28.7 | 4.4 | 4.0 | 9/16 |
| PSMA-4UF-4FPS | 1/4" | 7/16"-20 | 1/4" | 31.9 | 4.4 | 5.6 | 9/16 |
| PSMA-4UF-6FPS | 1/4" | 7/16"-20 | 3/8" | 35.3 | 4.4 | 8.7 | 11/16 |
| PSMA-5UF-4FPS | 5/16" | 1/2"-20 | 1/4" | 31.4 | 6.0 | 11.8 | 5/8 |
| PSMA-6UF-4FPS | 3/8' | 9/16"-18 | 1/4" | 30.9 | 7.5 | 5.6 | 11/16 |
| PSMA-6UF-6FPS | 3/8" | 9/16"-18 | 3/8" | 37.8 | 7.5 | 8.7 | 7/8 |
| PSMA-6UF-8FPS | 3/8" | 9/16"-18 | 1/2" | 38.1 | 7.5 | 11.8 | 13/16 |
| PSMA-8UF-4FPS | 1/2" | 3/4"-16 | 1/4" | 33.4 | 9.9 | 5.6 | 7/8 |
| PSMA-8UF-6FPS | 1/2" | 3/4"-16 | 3/8" | 36.3 | 9.9 | 8.7 | 7/8 |
| PSMA-8UF-8FPS | 1/2" | 3/4"-16 | 1/2" | 37.7 | 9.9 | 11.8 | 7/8 |
| PSMA-8UF-12FPS | 1/2" | 3/4"-16 | 3/4" | 42.8 | 9.9 | 16.2 | 1 |
| PSMA-10UF-6FPS | 5/8" | 7/8"-14 | 3/8" | 38.1 | 12.3 | 8.7 | 1 |
| PSMA-10UF-8FPS | 5/8" | 7/8"-14 | 1/2" | 39.2 | 12.3 | 11.8 | 1 |
| PSMA-10UF-12FPS | 5/8" | 7/8"-14 | 3/4" | 41.8 | 12.3 | 16.2 | 1 |
| PSMA-12UF-6FPS | 3/4" | 1.1/16"-14 | 3/8" | 41.9 | 15.4 | 8.7 | 1.1/4 |
| PSMA-12UF-8FPS | 3/4" | 1.1/16"-14 | 1/2" | 42.2 | 15.4 | 11.8 | 1.1/4 |
| PSMA-12UF-12PFS | 3/4" | 1.1/16"-14 | 3/4" | 47.6 | 15.4 | 16.2 | 1.1/4 |
| PSMA-12UF-16FPS | 3/4" | 1.1/16"-14 | 1" | 51.4 | 15.4 | 21.4 | 1.1/4 |
| PSMA-14UF-16FPS | 7/8" | 1.3/16"-12 | 3/4" | 47.9 | 18.3 | 16.2 | 1.3/8 |
| PSMA-16UF-12FPS | 1" | 1.5/16"-12 | 3/4" | 50.9 | 21.4 | 16.2 | 1.1/2 |
| PSMA-16UF-16FPS | 1" | 1.5/16"-12 | 1" | 51.6 | 21.4 | 21.4 | 1.1/2 |
| PSMA-16UF-20FPS | 1" | 1.5/16"-12 | 1.1/4" | 57.1 | 21.4 | 29.0 | 1.7/8 |
| PSMA-20UF-16FPS | 1.1/4" | 1.5/8"-12 | 1" | 53.7 | 27.4 | 21.4 | 1.7/8 |
| PSMA-20UF-20FPS | 1.1/4" | 1.5/8"-12 | 1.1/4" | 54.3 | 27.4 | 29.0 | 1.7/8 |
| PSMA-24UF-20FPS | 1.1/2" | 1.7/8"-12 | 1.1/4" | 53.3 | 33.3 | 29.0 | 2.1/8 |
| PSMA-24UF-24FPS | 1.1/2" | 1.7/8"-12 | 1.1/2" | 58.0 | 33.3 | 35.0 | 2.1/8 |
| PSMA-32UF-32FPS | 2" | 2.1/2"-12 | 2" | 60.1 | 45.0 | 46.0 | 2.3/4 |
• Dimensions are for reference only. Subject to change.
