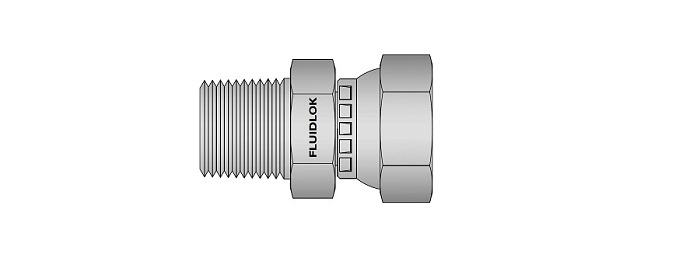

Pipe Swivel Male Adaptor (Ref. 1404)
- Features: NPSM Female Swivel Fittings are to form a mechanical seal with NPTF Pipe Male Fittings.
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread.

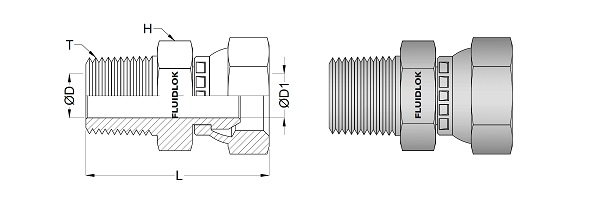

Pipe Swivel Male Adaptor
|
FLUIDLOK Part Number |
T (NPT) |
FPS (NPSM) |
L (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|
| PSMA-2N-2FPS | 1/8" | 1/8" | 27.2 | 4.7 | 4.0 | 9/16 |
| PSMA-2N-4FPS | 1/8" | 1/4" | 30.4 | 4.7 | 5.6 | 11/16 |
| PSMA-4N-2FPS | 1/4" | 1/8" | 33.3 | 7.1 | 4.0 | 11/16 |
| PSMA-4N-4FPS | 1/4" | 1/4" | 34.9 | 7.1 | 5.6 | 11/16 |
| PSMA-4N-6FPS | 1/4" | 3/8" | 39.4 | 7.1 | 8.7 | 13/16 |
| PSMA-4N-8FPS | 1/4" | 1/2" | 41.5 | 7.1 | 11.8 | 1 |
| PSMA-6N-4FPS | 3/8' | 1/4" | 36.7 | 10.3 | 5.6 | 3/4 |
| PSMA-6N-6FPS | 3/8" | 3/8" | 39.1 | 10.3 | 8.7 | 7/8 |
| PSMA-6N-8FPS | 3/8" | 1/2" | 41.5 | 10.3 | 11.8 | 1 |
| PSMA-8N-4FPS | 1/2" | 1/4" | 42.3 | 13.5 | 5.6 | 7/8 |
| PSMA-8N-6FPS | 1/2" | 3/8" | 45.7 | 13.5 | 8.7 | 7/8 |
| PSMA-8N-8FPS | 1/2" | 1/2" | 46.3 | 13.5 | 11.8 | 1 |
| PSMA-8N-12FPS | 1/2" | 3/4" | 51.2 | 13.5 | 16.2 | 1.1/4 |
| PSMA-12N-6FPS | 3/4" | 3/8" | 45.7 | 20.6 | 8.7 | 7/8 |
| PSMA-12N-8FPS | 3/4" | 1/2" | 47.3 | 20.6 | 11.8 | 1 |
| PSMA-12N-12PFS | 3/4" | 3/4" | 48.5 | 20.6 | 16.2 | 1.1/4 |
| PSMA-12N-16FPS | 3/4" | 1" | 54.2 | 20.6 | 21.4 | 1.1/2 |
| PSMA-12N-20FPS | 3/4" | 1.1/4" | 56.0 | 20.6 | 29.0 | 1.7/8 |
| PSMA-16N-6FPS | 1" | 3/8" | 52.1 | 23.8 | 8.7 | 1.3/8 |
| PSMA-16N-8FPS | 1" | 1/2" | 54.7 | 23.8 | 11.8 | 1.1/4 |
| PSMA-16N-12FPS | 1" | 3/4" | 57.8 | 23.8 | 16.2 | 1.1/2 |
| PSMA-16N-16FPS | 1" | 1" | 60.3 | 23.8 | 21.4 | 1.7/8 |
| PSMA-16N-20FPS | 1" | 1.1/4" | 64.9 | 23.8 | 29.0 | 2.1/8 |
| PSMA-20N-16FPS | 1.1/4" | 1" | 60.3 | 31.7 | 21.4 | 1.1/2 |
| PSMA-20N-20FPS | 1.1/4" | 1.1/4" | 62.1 | 31.7 | 29.0 | 1.7/8 |
| PSMA-20N-24FPS | 1.1/4" | 1.1/2" | 61.6 | 31.7 | 35.0 | 2.1/8 |
| PSMA-24N-20FPS | 1.1/2" | 1.1/4" | 62.6 | 38.1 | 29.0 | 1.7/8 |
| PSMA-24N-24FPS | 1.1/2" | 1.1/2" | 66.2 | 38.1 | 35.0 | 2.1/8 |
| PSMA-32N-32FPS | 2" | 2" | 69.5 | 49.2 | 46.0 | 2.5/8 |
• Dimensions are for reference only. Subject to change.
