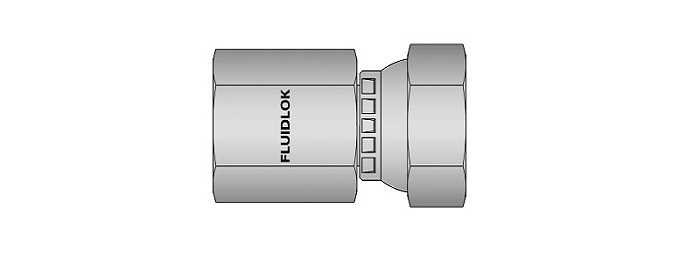

Pipe Swivel Female Adaptor (Ref. 1405)
- Features: NPSM Female Swivel Fittings are to form a mechanical seal with NPTF Pipe Male Fittings.
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread.

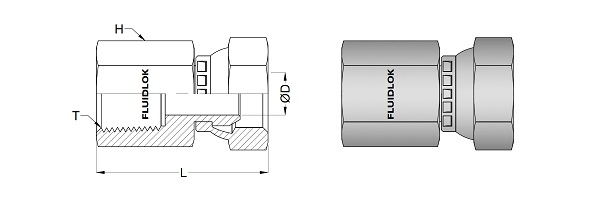

Pipe Swivel Female Adaptor
|
FLUIDLOK Part Number |
T (NPT) |
FPS (NPSM) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|
| PSFA-2N-2FPS | 1/8" | 1/8" | 25.7 | 4.0 | 9/16 |
| PSFA-2N-4FPS | 1/8" | 1/4" | 31.6 | 5.6 | 11/16 |
| PSFA-4N-2FPS | 1/4" | 1/8" | 34.5 | 4.0 | 11/16 |
| PSFA-4N-4FPS | 1/4" | 1/4" | 34.9 | 5.6 | 11/16 |
| PSFA-4N-6FPS | 1/4" | 3/8" | 38.4 | 8.7 | 7/8 |
| PSFA-6N-4FPS | 3/8" | 1/4" | 36.5 | 5.6 | 11/16 |
| PSFA-6N-6FPS | 3/8" | 3/8" | 39.4 | 8.7 | 7/8 |
| PSFA-6N-8FPS | 3/8" | 1/2" | 43.5 | 11.8 | 1 |
| PSFA-8N-4FPS | 1/2" | 1/4" | 43.3 | 5.6 | 1 |
| PSFA-8N-6FPS | 1/2" | 3/8" | 42.9 | 8.7 | 7/8 |
| PSFA-8N-8FPS | 1/2" | 1/2" | 45.0 | 11.8 | 1 |
| PSFA-8N-12FPS | 1/2" | 3/4" | 48.1 | 16.2 | 1.1/4 |
| PSFA-12N-8FPS | 3/4" | 1/2" | 46.8 | 11.8 | 1.1/4 |
| PSFA-12N-12FPS | 3/4" | 3/4" | 48.1 | 16.2 | 1.1/4 |
| PSFA-12N-16FPS | 3/4" | 1" | 54.7 | 21.4 | 1.1/2 |
| PSFA-16N-12FPS | 1" | 3/4" | 55.3 | 16.2 | 1.1/2 |
| PSFA-16N-16FPS | 1" | 1" | 59.0 | 21.4 | 1.1/2 |
| PSFA-20N-20FPS | 1.1/4" | 1.1/4" | 59.1 | 29.0 | 1.7/8 |
| PSFA-24N-24FPS | 1.1/2" | 1.1/2" | 61.8 | 35.0 | 2.1/8 |
| PSFA-32N-32FPS | 2" | 2" | 63.4 | 46.0 | 2.5/8 |
• Dimensions are for reference only. Subject to change.
