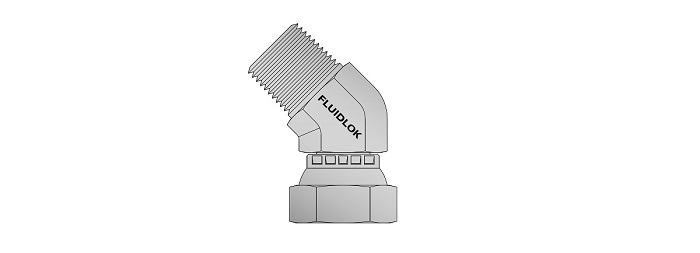

Pipe Swivel Male Elbow 45º (Ref. 1503)
- Features: NPSM Female Swivel Fittings are to form a mechanical seal with NPTF Pipe Male Fittings.
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread.

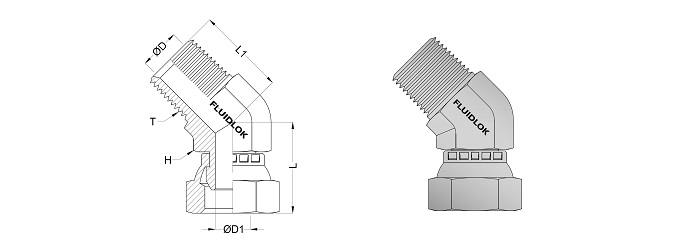

Pipe Swivel Male Elbow 45º
|
FLUIDLOK Part Number |
T (NPT) |
FPS (NPSM) |
L (mm) |
L1 (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|
| PSME-2N-2FPS-45 | 1/8" | 1/8" | 19.0 | 13.2 | 4.7 | 4.0 | 7/16 |
| PSME-2N-4FPS-45 | 1/8" | 1/4" | 22.2 | 17.0 | 4.7 | 5.6 | 9/16 |
| PSME-4N-4FPS-45 | 1/4" | 1/4" | 22.2 | 21.8 | 7.1 | 5.6 | 9/16 |
| PSME-4N-6FPS-45 | 1/4" | 3/8" | 26.7 | 24.1 | 7.1 | 8.7 | 3/4 |
| PSME-6N-4FPS-45 | 3/8" | 1/4" | 23.8 | 24.1 | 10.3 | 5.6 | 3/4 |
| PSME-6N-6FPS-45 | 3/8" | 3/8" | 26.7 | 24.1 | 10.3 | 8.7 | 3/4 |
| PSME-6N-8FPS-45 | 3/8" | 1/2" | 27.8 | 24.9 | 10.3 | 11.8 | 7/8 |
| PSME-8N-4FPS-45 | 1/2" | 1/4" | 23.8 | 29.7 | 13.5 | 5.6 | 7/8 |
| PSME-8N-6FPS-45 | 1/2" | 3/8" | 26.7 | 29.7 | 13.5 | 8.7 | 7/8 |
| PSME-8N-8FPS-45 | 1/2" | 1/2" | 27.8 | 29.7 | 13.5 | 11.8 | 7/8 |
| PSME-8N-12FPS-45 | 1/2" | 3/4" | 32.9 | 30.5 | 13.5 | 16.2 | 1.1/16 |
| PSME-12N-8FPS-45 | 3/4" | 1/2" | 31.3 | 30.5 | 20.6 | 11.8 | 1.1/16 |
| PSME-12N-12PFS-45 | 3/4" | 3/4" | 32.9 | 30.5 | 20.6 | 16.2 | 1.1/16 |
| PSME-12N-16FPS-45 | 3/4" | 1" | 37.4 | 32.8 | 20.6 | 21.4 | 1.3/8 |
| PSME-16N-12FPS-45 | 1" | 3/4" | 33.4 | 37.6 | 23.8 | 16.2 | 1.3/8 |
| PSME-16N-16FPS-45 | 1" | 1" | 37.4 | 37.6 | 23.8 | 21.4 | 1.3/8 |
| PSME-16N-20FPS-45 | 1" | 1.1/4" | 40.0 | 41.7 | 23.8 | 29.0 | 1.5/8 |
| PSME-20N-16FPS-45 | 1.1/4" | 1" | 38.7 | 42.4 | 31.7 | 21.4 | 1.5/8 |
| PSME-20N-20FPS-45 | 1.1/4" | 1.1/4" | 40.0 | 42.4 | 31.7 | 29.0 | 1.5/8 |
| PSME-24N-24FPS-45 | 1.1/2" | 1.1/2" | 42.8 | 45.0 | 38.1 | 35.0 | 1.7/8 |
| PSME-32N-32FPS-45 | 2" | 2" | 55.1 | 53.6 | 49.2 | 46.0 | 2.1/2 |
• Dimensions are for reference only. Subject to change.
