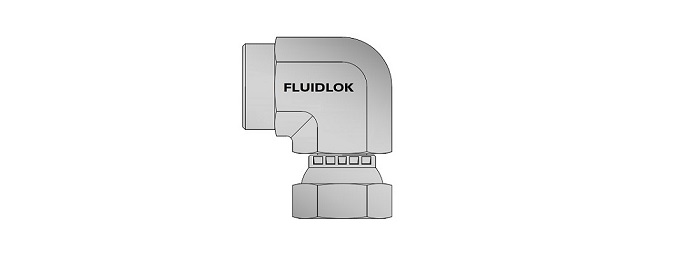

Pipe Swivel Female Elbow (Ref. 1502)
- Features: NPSM Female Swivel Fittings are to form a mechanical seal with NPTF Pipe Male Fittings.
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread.

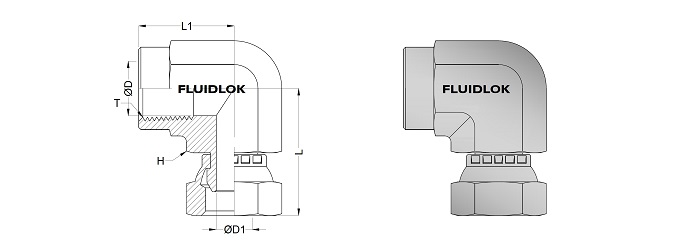

Pipe Swivel Female Elbow
|
FLUIDLOK Part Number |
T (NPT) |
FPS (NPSM) |
L (mm) |
L1 (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|
| PSFE-2N-2FPS | 1/8" | 1/8" | 20.3 | 16.8 | 4.7 | 4.0 | 7/16 |
| PSFE-4N-2FPS | 1/4" | 1/8" | 22.4 | 22.4 | 7.1 | 4.0 | 9/16 |
| PSFE-4N-4FPS | 1/4" | 1/4" | 25.1 | 22.4 | 7.1 | 5.6 | 9/16 |
| PSFE-4N-6FPS | 1/4" | 3/8" | 25.7 | 22.4 | 7.1 | 8.7 | 3/4 |
| PSFE-6N-4FPS | 3/8" | 1/4" | 26.4 | 25.9 | 10.3 | 5.6 | 3/4 |
| PSFE-6N-6FPS | 3/8" | 3/8" | 26.9 | 25.9 | 10.3 | 8.7 | 3/4 |
| PSFE-6N-8FPS | 3/8" | 1/2" | 28.7 | 25.9 | 10.3 | 11.8 | 7/8 |
| PSFE-8N-4FPS | 1/2" | 1/4" | 29.2 | 31.2 | 13.5 | 5.6 | 7/8 |
| PSFE-8N-6FPS | 1/2" | 3/8" | 29.7 | 31.2 | 13.5 | 8.7 | 7/8 |
| PSFE-8N-8FPS | 1/2" | 1/2" | 31.5 | 31.2 | 13.5 | 11.8 | 7/8 |
| PSFE-8N-12FPS | 1/2" | 3/4" | 31.5 | 31.2 | 13.5 | 16.2 | 1.1/16 |
| PSFE-12N-8FPS | 3/4" | 1/2" | 37.3 | 34.5 | 20.6 | 11.8 | 1.1/16 |
| PSFE-12N-12PFS | 3/4" | 3/4" | 37.3 | 34.5 | 20.6 | 16.2 | 1.1/16 |
| PSFE-12N-16FPS | 3/4" | 1" | 40.1 | 34.5 | 20.6 | 21.4 | 1.3/8 |
| PSFE-16N-12FPS | 1" | 3/4" | 41.1 | 41.1 | 23.8 | 16.2 | 1.3/8 |
| PSFE-16N-16FPS | 1" | 1" | 43.9 | 41.1 | 23.8 | 21.4 | 1.3/8 |
| PSFE-20N-20FPS | 1.1/4" | 1.1/4" | 46.5 | 43.2 | 31.7 | 29.0 | 1.5/8 |
| PSFE-24N-24FPS | 1.1/2" | 1.1/2" | 61.2 | 52.8 | 38.1 | 35.0 | 1.7/8 |
| PSFE-32N-32FPS | 2" | 2" | 65.3 | 60.7 | 49.2 | 46.0 | 2.1/2 |
• Dimensions are for reference only. Subject to change.
