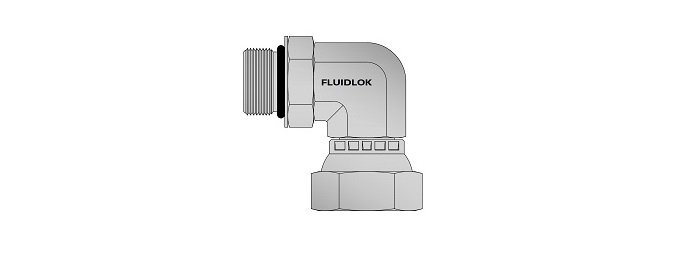

Pipe Swivel Adjustable Male Elbow (Ref. 6901)
- Features: NPSM Female Swivel Fittings are to form a mechanical seal with NPTF Pipe Male Fittings.
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread.

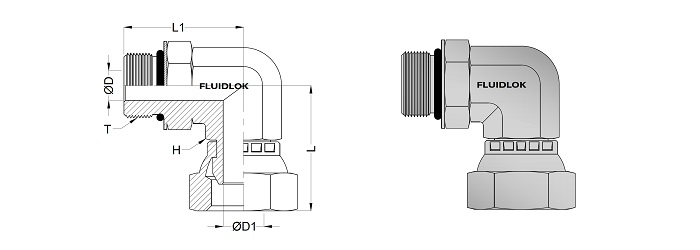

Pipe Swivel Adjustable Male Elbow
|
FLUIDLOK Part Number |
T |
T (UNF/UN-2A) |
FPS (NPSM) |
L (mm) |
L1 (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|---|
| PSAME-4UF-4FPS | 1/4" | 7/16"-20 | 1/4" | 26.0 | 30.2 | 4.4 | 5.6 | 9/16 |
| PSAME-4UF-6FPS | 1/4" | 7/16"-20 | 3/8" | 31.2 | 32.0 | 4.4 | 8.7 | 3/4 |
| PSAME-6UF-4FPS | 3/8" | 9/16"-18 | 1/4" | 26.0 | 31.8 | 7.5 | 5.6 | 9/16 |
| PSAME-6UF-6FPS | 3/8" | 9/16"-18 | 3/8" | 29.0 | 31.8 | 7.5 | 8.7 | 9/16 |
| PSAME-6UF-8FPS | 3/8" | 9/16"-18 | 1/2" | 33.6 | 33.5 | 7.5 | 11.8 | 3/4 |
| PSAME-8UF-4FPS | 1/2" | 3/4"-16 | 1/4" | 28.3 | 36.8 | 9.9 | 5.6 | 3/4 |
| PSAME-8UF-6FPS | 1/2" | 3/4"-16 | 3/8" | 31.2 | 36.8 | 9.9 | 8.7 | 3/4 |
| PSAME-8UF-8FPS | 1/2" | 3/4"-16 | 1/2" | 33.6 | 36.8 | 9.9 | 11.8 | 3/4 |
| PSAME-8UF-12FPS | 1/2" | 3/4"-16 | 3/4" | 38.4 | 41.1 | 9.9 | 16.2 | 1.1/16 |
| PSAME-10UF-6FPS | 5/8" | 7/8"-14 | 3/8" | 32.5 | 43.2 | 12.3 | 8.7 | 7/8 |
| PSAME-10UF-8FPS | 5/8" | 7/8"-14 | 1/2" | 33.6 | 43.2 | 12.3 | 11.8 | 7/8 |
| PSAME-10UF-12FPS | 5/8" | 7/8"-14 | 3/4" | 40.0 | 45.2 | 12.3 | 16.2 | 1.1/16 |
| PSAME-12UF-6FPS | 3/4" | 1.1/16"-12 | 3/8" | 38.1 | 49.3 | 15.4 | 8.7 | 1.1/16 |
| PSAME-12UF-8FPS | 3/4" | 1.1/16"-12 | 1/2" | 38.4 | 49.3 | 15.4 | 11.8 | 1.1/16 |
| PSAME-12UF-12FPS | 3/4" | 1.1/16"-12 | 3/4" | 40.0 | 49.3 | 15.4 | 16.2 | 1.1/16 |
| PSAME-12UF-16FPS | 3/4" | 1.1/16"-12 | 1" | 47.3 | 52.1 | 15.4 | 21.4 | 1.3/8 |
| PSAME-14UF-12FPS | 7/8" | 1.3/16"-12 | 3/4" | 43.3 | 50.8 | 18.3 | 16.2 | 1.3/8 |
| PSAME-16UF-12FPS | 1" | 1.5/16"-12 | 3/4" | 43.3 | 52.1 | 21.4 | 16.2 | 1.3/8 |
| PSAME-16UF-16FPS | 1" | 1.5/16"-12 | 1" | 47.3 | 52.1 | 21.4 | 21.4 | 1.3/8 |
| PSAME-16UF-20FPS | 1" | 1.5/16"-12 | 1.1/4" | 52.7 | 57.1 | 21.4 | 35.0 | 1.5/8 |
| PSAME-20UF-12FPS | 1.1/4" | 1.5/8"-12 | 3/4" | 46.6 | 57.1 | 27.4 | 16.2 | 1.5/8 |
| PSAME-20UF-16FPS | 1.1/4" | 1.5/8"-12 | 1" | 51.4 | 57.1 | 27.4 | 21.4 | 1.5/8 |
| PSAME-20UF-20FPS | 1.1/4" | 1.5/8"-12 | 1.1/4" | 52.7 | 57.1 | 27.4 | 32.0 | 1.5/8 |
| PSAME-24UF-24FPS | 1.1/2" | 1.7/8"-12 | 1.1/4" | 53.8 | 60.7 | 33.3 | 32.0 | 1.7/8 |
| PSAME-24UF-24FPS | 1.1/2" | 1.7/8"-12 | 1.1/2" | 56.5 | 60.7 | 33.3 | 35.0 | 1.7/8 |
| PSAME-32UF-32FPS | 2" | 2.1/2"-12 | 2" | 67.0 | 73.4 | 45.0 | 46.0 | 2.1/2 |
• Dimensions are for reference only. Subject to change.
