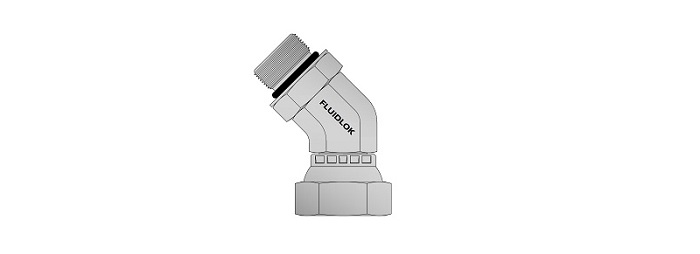

Pipe Swivel Adjustable Male Elbow 45° (Ref. 6902)
- Features: NPSM Female Swivel Fittings are to form a mechanical seal with NPTF Pipe Male Fittings.
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread.

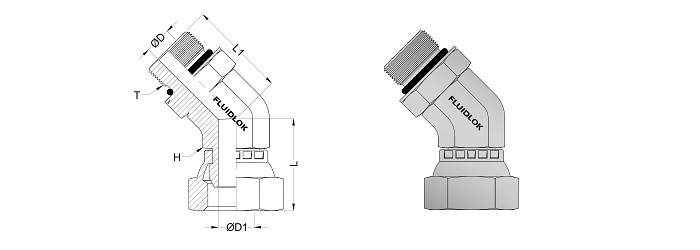

Pipe Swivel Adjustable Male Elbow 45°
|
FLUIDLOK Part Number |
T |
T (UNF/UN-2A) |
FPS (NPSM) |
L (mm) |
L1 (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|---|
| PSAME-4UF-4FP-45 | 1/4" | 7/16"-20 | 1/4" | 19.2 | 27.4 | 4.4 | 4.0 | 9/16 |
| PSAME-6UF-4FPS-45 | 3/8" | 9/16"-18 | 1/4" | 22.2 | 29.0 | 7.5 | 5.6 | 9/16 |
| PSAME-6UF-6FPS-45 | 3/8" | 9/16"-18 | 3/8" | 26.8 | 29.7 | 7.5 | 8.7 | 9/16 |
| PSAME-6UF-8FPS-45 | 3/8" | 9/16"-18 | 1/2" | 27.7 | 31.2 | 7.5 | 11.8 | 3/4 |
| PSAME-8UF-6FPS-45 | 1/2" | 3/4"-16 | 3/8" | 26.7 | 33.0 | 9.9 | 8.72 | 3/4 |
| PSAME-8UF-8FPS-45 | 1/2" | 3/4"-16 | 1/2" | 24.7 | 34.5 | 9.9 | 11.8 | 3/4 |
| PSAME-8UF-12FPS-45 | 1/2" | 3/4"-16 | 3/4" | 32.9 | 35.8 | 9.9 | 16.2 | 1.1/16 |
| PSAME-10UF-6FPS-45 | 5/8" | 7/8"-14 | 3/8" | 26.7 | 38.6 | 12.3 | 8.7 | 7/8 |
| PSAME-10UF-8FPS-45 | 5/8" | 7/8"-14 | 1/2" | 27.8 | 38.6 | 12.3 | 11.8 | 7/8 |
| PSAME-12UF-6FPS-45 | 3/4" | 1.1/16"-12 | 3/8" | 31.0 | 43.9 | 15.4 | 8.7 | 1.1/16 |
| PSAME-12UF-8FPS-45 | 3/4" | 1.1/16"-12 | 1/2" | 32.9 | 43.9 | 15.4 | 11.8 | 1.1/16 |
| PSAME-12UF-12FPS-45 | 3/4" | 1.1/16"-12 | 3/4" | 32.9 | 43.9 | 15.4 | 16.2 | 1.1/16 |
| PSAME-16UF-16FPS-45 | 1" | 1.5/16"-12 | 1" | 37.4 | 47.2 | 21.4 | 21.4 | 1.3/8 |
| PSAME-20UF-20FPS-45 | 1.1/4" | 1.5/8"-12 | 1.1/4" | 40.0 | 48.5 | 27.4 | 32.0 | 1.5/8 |
| PSAME-24UF-24FPS-45 | 1.1/2" | 1.7/8"-12 | 1.1/2" | 42.8 | 48.5 | 33.3 | 35.0 | 1.7/8 |
• Dimensions are for reference only. Subject to change.
