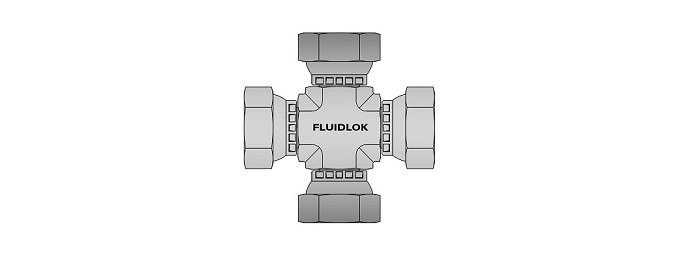

Pipe Swivel Union Cross (Ref. 1605)
- Features: NPSM Female Swivel Fittings are to form a mechanical seal with NPTF Pipe Male Fittings.
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread.
Pipe Swivel Union Cross
|

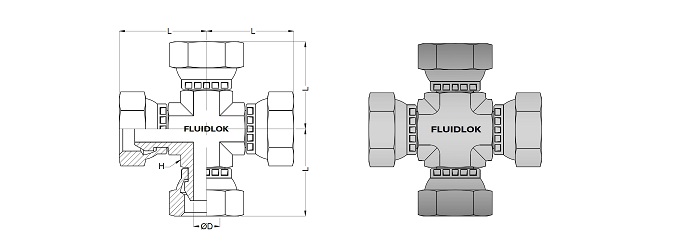

FLUIDLOK Part Number |
FPS (NPSM) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|
| PSUC-2FPS | 1/8" | 21.1 | 4.0 | 11/16 |
| PSUC-4FPS | 1/4" | 26.0 | 5.6 | 9/16 |
| PSUC-6FPS | 3/8" | 32.1 | 8.7 | 3/4 |
| PSUC-8FPS | 1/2" | 33.6 | 11.8 | 7/8 |
| PSUC-12PFS | 3/4" | 40.5 | 16.2 | 1.1/16 |
| PSUC-16FPS | 1" | 47.2 | 21.4 | 1.5/16 |
| PSUC-20FPS | 1.1/4" | 52.3 | 29.0 | 1.5/8 |
• Dimensions are for reference only. Subject to change.
