Miniature Needle Valve

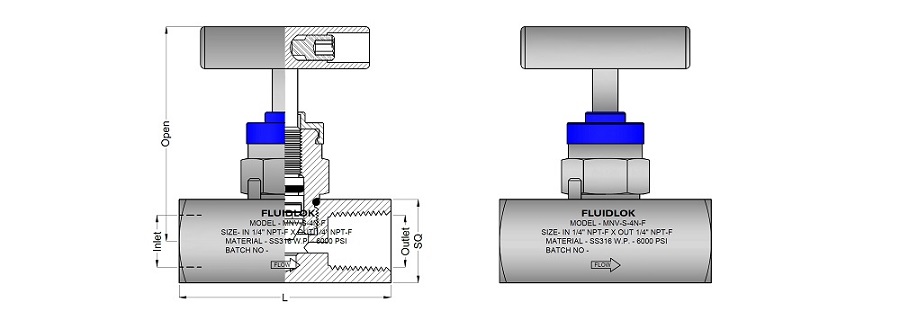

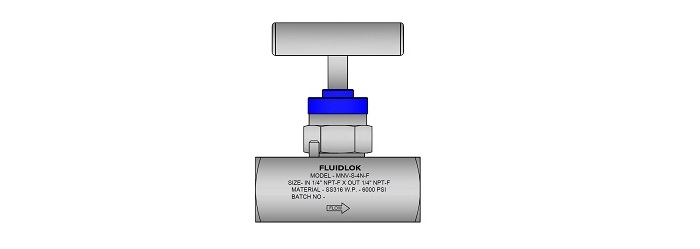

Miniature Needle Valve - NPT X NPT
|
FLUIDLOK Part Number |
End Connection |
SQ (mm) |
L (mm) |
Open (mm) |
Orifice (mm) |
Cv | |
|---|---|---|---|---|---|---|---|
| Inlet | Outlet | ||||||
| MNV-S-4N-F | 1/4" | 1/4" | 19.0 | 48.0 | 49.7 | 2.0 | -- |
| MNV-S-4N-M | 1/4" | 1/4" | 19.0 | 48.0 | 49.7 | 2.0 | -- |
| MNV-S-4N-MF | 1/4" | 1/4" | 19.0 | 48.0 | 49.7 | 2.0 | -- |
• Dimensions are for reference only. Subject to change.
